Cytotoxicity study of reaction products between isatin and furan

  • Md. Arifuzzaman Department of Chemistry, Jahangirnagar University, Savar, Dhaka 1342, Bangladesh.
  • Rafiya Khan Kandahary Department of Chemistry, Jahangirnagar University, Savar, Dhaka 1342, Bangladesh.
  • Md. Rabiul Islam Department of Chemistry, Jahangirnagar University, Savar, Dhaka 1342, Bangladesh.
Keywords: Brine shrimp, Cytotoxicity, Furan insertion, Isatin
DOI: 10.3329/bjp.v4i2.2381

Abstract

Isatin, 5-chloroisatin, 7-bromoisatin and 7-ethylisatin on treatment with furan in presence of diethylamine yield furan moiety inclusion products bis-diisatin [3,3´] furan, bis-[5,5´] dichlorodiisatin [3,3´] furan, bis-[7,7´] dibromodiisatin [3,3´] furan and bis-[7,7´] diethyldiisatin [3,3´] furan respectively in moderate yields. The cytotoxicity of these compounds was studied by the brine shrimp lethality bioassay and the Structure activity relationships (SAR) of these compounds has been discussed. The present study shows that the compound bis-[7,7´] dibromodiisatin [3,3´] furan had pronounced cytotoxicity whereas compounds bis-[5,5´] dichlorodiisatin [3,3´] furan and bis-[7,7´] diethyldiisatin [3,3´] furan were moderately active.  It is remarkable that the constituent, Y = -Br at seven position in the benzene ring has greater activity than ethyl and chlorine atom.

Introduction

Isatin (indole-2,3-dione) (1a) being a biofunctional compound shows chemical activity at the keto group (C-3) and a large number of isatin derivatives have been synthesized which possess biological activity and pharmacological activity like fungicides (Chen and Rhodes, 1996), insecticides (Bahmaria and Deliwala, 1968), anti-cancer (Holla et al., 2000), antifungal properties (Islam et al., 1998). In continuation of our systematic studies (Islam et al., 2001) on isatin derivatives  as potential cytotoxic agents, we extended our work on the reaction between isatin and thiophene (Hoque and Islam, 2008). Isatin reacted with thiophene in presence of conc. H2SO4 to afford a mixture of products having a single and two thiophene moiety inserted in two isatin molecules. So, we planned to investigate the reaction of isatin with furan and their cytotoxicity by brine shrimp lethality bioassay (Meyer et al., 1982; Solis et al., 1993).

Materials and Methods

All melting points are uncorrected and were recorded by thin disc method on a “Fischer Johns” electrothermal melting point apparatus. Thin layer chromatography (TLC) was performed on silica gel 60 F254 as the coating substance. IR spectra were recorded in KBr disc on a FT-IR/200 spectrophotometer. 1H NMR spectra were recorded on VXR 300 MHz using CDCl3 solvent with TMS as internal standard.

The tested compound (Scheme 1) 2a, 2b, 2c and 2d were synthesized by following procedure. The products have been characterized with the help of spectral analysis from Japan (Okayama University).

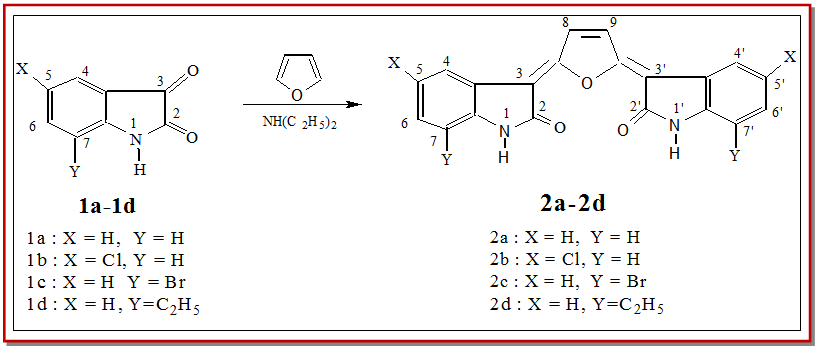

Scheme 1

Preparation of Bis-diisatin [3,3´] furan (2a)

To a solution of isatin (0.5 g, 3.4 mmoL) in acetic acid (30 mL) at room temperature was added then furan (3.5 mL) in presence of diethylamine (12 mL) under intensive stirring. The temperature was raised to 80ºC and kept for 60 min. The color of reaction mixture quickly changed from red to deep blue. Then the reaction mixture was stirred overnight at room temperature. After completion of the reaction distilled water (40 mL) was added and the products were extracted by CHCl3. The organic layer was washed with water  (2 × 20) and  dried over anhydrous CaCl2. The solvent on evaporation under reduced pressure gave a crystalline solid product (2a) having a yield of 80% (2.7 g) and m.p. 90-91ºC. This product was found to be homogeneous on silica gel TLC plate with Rf = 0.4 (petrol ether: ethyl acetate = 1:4).



Preparation of Bis-[5,5´] dichloro diisatin [3,3´] furan (2b)

Similarly compound 2b was prepared from 5-chloroisatin (3.3 g, 2.8 mmol) in acetic acid (20 mL) and furan (2 mL) in presence of  diethylamine (25 mL). The usual work-up gave a crystalline  solid product (2b) having a yield of 82% (3.7 g) and m.p. 95-96ºC. This product was found to be homogeneous on silica gel TLC plate with Rf = 0.4 (petroleum ether: ethylacetate = 1:4).

Preparation of Bis-[7,7´] dibromo diisatin [3,3´] furan (2c)

Similarly compound 2c was prepared from 7-bromoisatin (0.2 g , 2.1 mmoL) in acetic acid (20 mL) and furan (2 mL) in presence of diethylamine (10 mL). The usual work-up gave a crystalline  solid product (2c) having a yield of 85% (3.9 g) and m.p. 96-97ºC. This product was found to be homogeneous on silica gel TLC plate with Rf = 0.4 (petroleum ether: ethylacetate = 1:4).

Preparation of Bis-[7,7´] diethyl diisatin [3,3´] furan (2d)

Similarly compound 2d was prepared from 7-ethylisatin (0.4 g, 2.1 mmoL) in acetic acid (20 mL) and furan (2 mL) in presence of  diethylamine (10 mL). The usual work-up gave a brick red crystal-line solid product (2d) having a yield of 85% (3.9 g)   and m.p. 93-94ºC. This product was found to be homogeneous on silica gel tlc. plate with Rf = 0.4 (petroleum ether: ethyl acetate = 1:4).

The cytotoxicity of the synthesized compounds was studied by brine shrimp lethality bioassay (Solis et al., 1993).

Test animal

Brine shrimps (Artemia salina) were used as test animal for the investigation of cytotoxicity.

Hatching and maintenance of brine shrimp

The preferred condition for brine shrimp (temperature 28-30ºC, salinity 30-35 ppt, pH 8-9 and strong aeration) was established by mixing sodium chloride salts in water. After obtaining the desired condition, about one tea spoon of brine shrimp eggs was added to the beaker. After twelve hours hatching aggregated brine shrimp nauplii were collected in another beaker and rinsed with fresh water and applied for testing.

Preparation of test sample

For the cytotoxicity study, dimethylsulphoxide (DMSO) was used as solvent and the mortality of brine shrimp nauplii in this DMSO was almost zero. Different concentration (150, 100 and 50 μg/mL) of each test samples were prepared with DMSO. Then 10-12 brine shrimp nauplii were transferred to each test tube using a micro pipette.

Counting of nauplii

The numbers of survived nauplii in each test tube were counted. The percentage of mortality of brine shrimp was calculated for each sample that gives different mortality for different concentrations. An approximate linear correlation was observed when logarithm of concentration was plotted against percentage of mortality and the values of LC50 were calculated for each sample. The LC50 represents the concentration of a compound which will kill or inactive 50 percent of the test animal. LC50  is inversely proportional to the toxicity of a compound, i.e. the lower the LC50  the higher the toxicity.

Results

The structures of the synthesized compounds were analyzed by the spectroscopic data. The product 2a was obtained crystalline  solid having a yield of 80% after purification. IR (KBr): υ (cm-1): 3500 (br, υO-H), 3400 (br, υN-H), 3000 (sh, υC-H, aromatic), 1715(υC=O, lactam), 1690 (C=N), 1575, 1450 cm-1 (υC=C, aromatic). 1H-NMR (CDCl3) spectrum: δH (ppm): δ 7.40 (d, 2H, H4/4´), δ 6.90 (s, 2H, 2N-H), δ 6.40-6.50 (m, 6H, H5/5´ , H6/6´, H7/7´), δ 5.50 (s, 2H, H8,9); Elemental analysis; the  molecular formula of the compound 2a is C20H12N2O3. The found value of C=74.10, H=3.70, N=8.51 whereas the calculated value is C= 73.17, H=3.60, N=8.50. From the microanalysis result the rest 13.7% is due to oxygen atom. On the other hand, the actual calculation %O=14.7. So, the result clearly shows that one furan ring is condensed with two isatin molecules.

The product 2b was obtained as crystalline solid having a yield of 82% after purification. IR (KBr): υ (cm-1): 3500 (br, υO-H), 3400 (br, υN-H), 3000 (sh, υC-H, aromatic), 1715 (υC=O, lactam), 1690 (C=N), 1575, 1450 cm-1 (υC=C, aromatic). 1H-NMR (CDCl3) spectrum: δH (ppm): δ 7.40 (d, 2H, H4/4´), δ 7.00 (s, 2H, 2N-H), δ 6.40-6.50 (m, 4H, H6/6, H7/7), δ 4.90 (s, 2H, H8,9); Elemental analysis; the  molecular formula of the compound 2b is C20H10N2O3Cl2. The found value of C=61.31, H=2.52,    N=7.10 whereas the calculated value is C=60.30, H= 2.52, N=7.0. From the microanalysis result the rest 29.07% is due to oxygen and chlorine atom. On the other hand, the actual calculation of %O=12.1 and %Cl=18.1. The total, %O + %Cl= 30.1. The result is consistent with the structure of the compound.

The product 2c was obtained as crystalline solid having a yield of 85% after purification. IR (KBr): υ (cm-1): 3500 (br, υO-H), 3400 (br, υN-H), 3000 (sh, υC-H, aromatic), 1715 (υC=O, lactam), 1690 (C=N), 1575, 1450 cm-1 (υC=C, aromatic). 1H-NMR (CDCl3) spectrum: δH (ppm): δ 7.40 (d, 2H, H6/6´), δ 6.80 (s, 2H, 2N-H), δ 6.30-6.40 (m, 4H, H4/4´ , H5/5´), δ 4.80 (s, 2H, H8,9); Elemental analysis: the  molecular formula of the compound 2c is C20H10N2O3Br2. The found value of C=49.38, H=2.05, N =5.79 whereas the calculated value is  C=49.37, H=2.05, N=5.79. From the microanalysis result the rest 42.8% is due to oxygen and bromine atom. On the other hand, the actual calculation of %O=9.9 and %Br=32.9. The total, %O + %Br=42.8. So, the result clearly shows that one furan ring is condensed with two 7-bromoisatin molecules.

The product 2d was obtained as crystalline solid having a yield of 85% after purification. IR (KBr): υ (cm-1): 3500 (br, υO-H), 3400 (br, υN-H), 3000 (sh, υC-H, aromatic), 1715 (υC=O, lactam), 1690 (C=N), 1575, 1450 cm-1 (υC=C, aromatic). 1H-NMR (CDCl3) spectrum: δH (ppm): δ 7.40 (d, 2H, H6/6´), δ 7.00 (s, 2H, 2N-H), δ 6.30-6.40 (m, 4H, H4/4´, H5/5´), δ 5.5 (s, 2H, H8,9), δ 1.6-1.5 (q, 4H, 2CH2) δ 0.9-0.8 (t, 6H, 2CH3). Elemental analysis: the molecular formula of the compound 2d is C24H20N2O3. The found value of C=75.0, H=5.21, N= 7.28 whereas the calculated value is C=75.0, H=5.20, N =7.28. From the microanalysis result the rest 12.5% is due to oxygen atom. On the other hand, the actual calculation of %O=12.5. So, the structure is consistent with the elemental analysis.

The cytotoxicity study of the synthesized compounds was investigated on the brine shrimp as a test organism and the LC50 values for the synthesized compounds are shown in Table I.

Table I: LC50 values of the synthesized compounds 2a-2d

No. Compound LC50 value
(µg/mL)
1 2a 0.011
2 2b 0.003
3 2c 0.0005
4 2d 0.003

Structure activity relationship (SAR)

The LC50 values shows that it follows the order 2c>2d2d>2a (Scheme 2). The product 2c having bromine in seven position in the benzene ring shows highest cytotoxicity among the series. The product with Cl atom at position 5 in the benzene ring is almost equivalent to product 2d having –C2H5 in position seven of the benzene ring. Unsubstituted product 2a has least cytotoxic effect on brine shrimp.

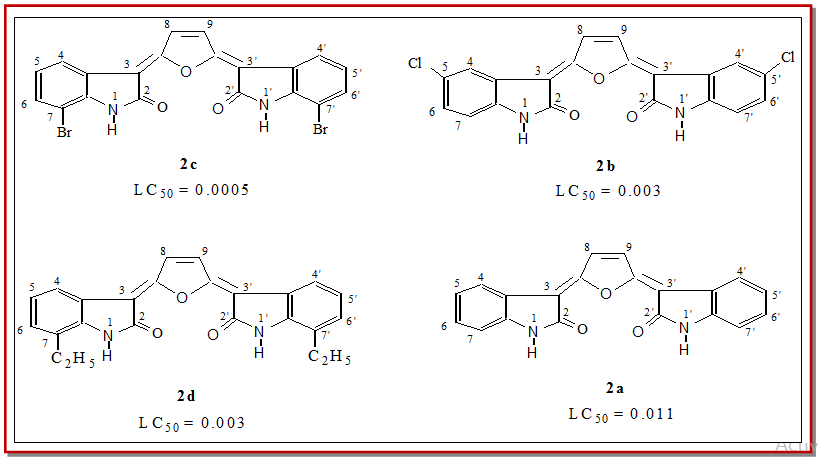

Scheme 2

Discussion

The furan inserted products (2a, 2b, 2c, 2d) have been synthesized from isatin and furan in moderate yields. It is to be noted here that the products having furan moiety has potential cytotoxicity than the corresponding thiophene analogues (Hoque and Islam, 2008) in every cases (Scheme 3). This cytotoxicity enhancement is caused by the presence of O atom in furan ring because O is more electronegative than S atom in thiophene  ring.

The SAR study of the synthesized compounds showed different cytotoxicity against brine shrimp. The chemical structure of a compound is very important as the relatively minor modification in the compound may result in major change in biological properties. The isatin (1a), 5-chloroisatin (1b), 7-bromoisatin (1c) shows moderately cytotoxicity (Hoque and Islam, 2008) as 1c> 1b>1a whereas the inserted furan moiety products show higher cytotoxicity. The cytotoxicity enhancement is due to presence of hetero atom O in the furan ring. The present study shows that the cytotoxicity increases by the introduction of Br atom in the benzene ring than that of Cl atom and the cytotoxicity is increased by the insertion of furan ring between two isatin molecules than that of thiophene insertion products.

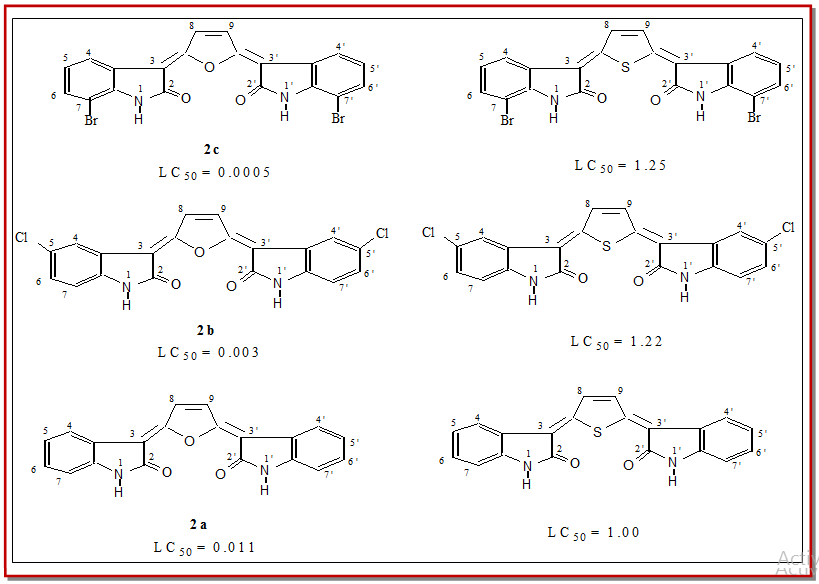

Scheme 3

Conclusion

Furan moieties have better cytotoxicity which means, it hinders the replication of DNA molecule more effectively.

Acknowledgements

The authors express gratitude and thanks to Prof. T. Nagamatsu, Faculty of Pharmaceuticals Sciences, Okayama University, Japan for supplying furan from Japan. We also thank Mr. A.G.M. Lokman Hossain, Okayama University, Japan for providing us the spectral and microanalysis data.

References

Bhamaria RP, Deliwala CV. In vitro effect of 1-acyl-4-alkyl-(or aryl)-thiosemicarbazides 1-(5-chlorosalisylidine)-4-alkyl-(or aryl)-thiosemicarbazones and some hydrazones of 5-cholorosalisyldehyde against pathogenic bacteria including mycobacterium tuberculosis (H37Rv). Indian J Exp Biol. 1968; 6: 62-63.

Chen H, Rhodes J. Schiff base forming drugs: Mechanism of immune potentiation and therapeutic potential. J Mol Med. 1996; 74: 497-504.

Holla BS, Rao, Shridhara K, Akberali PM. Studies on arylfuran derivatives. Part XI. Synthesis, characterization and biological studies on some mannich base carrying 2,4-dichloro-phenylfurfural moiety. Farmacos 2000; 55: 388-44.

Hoque MM, Islam MR. Cytotoxicity study of some indophenines and isatin derivartives. Bangladesh J Pharmacol. 2008; 3: 21-26.

Islam MR, Abedin MJ, Duddeck H. Synthesis of 1-methyl bis-dioxopyrolino [2,3: 2,3: 6,5] benzene and its heterocycles via thicarbahydrazone, thiosemicarbazone. J Bangladesh Chem Soc. 1998; 1: 71-78.

Islam MR, Abedin MJ. Khayer K. Synthesis of some 5-spiro- (5´-methylisatin)-4-N-acetyl-2-acetylamino-∆2-1,3,4-ylisatin-3-hydrazino)-∆2-1,3,4-thiadiazolines. Indian J Chem. 2001; 40B: 240-46.

Meyer BN, Ferringni NR, Putnam JE, Jacobsen LB, Nichols DE, Melaughlin JL. Brine shrimp: A convenient general bioassay for bioactive plant constituent. Plant Med. 1982; 45: 31-34.

Solis PN, Wright CW, Anderson MM, Gupta MP, Phillipson JD. A micorwell cytotoxicity assays, using Artemia salina (brine shrimp). Plant Med. 1993; 59: 250-52.
