Volatile phytochemical composition of rhizome of ginger after extraction by headspace solid-phase microextraction, petroleum ether extraction and steam distillation extraction
Abstract
The sampling techniques headspace solid-phase microextraction (HS-SPME), petrol ether extraction (PEE) and steam distillation extraction (SDE) were compared for the GC-MS of volatile constituents present in ginger (Zingiber officinale). The effects of different parameters, such as extraction fibers, extraction time, extraction temperature and particle size ranges, on the HS-SPME of rhizome of ginger were investigated. Zingiberene (53.1%) were predominant components of ginger samples obtained by HS-SPME whereas those levels were 39.0% in the same samples by PEE and 35.1% in those by SDE, respectively. HS-SPME with polydimethylsiloxane (PDMS) fiber was more selective and particularly efficient for the isolation of volatile phytochemical composition and afforded a higher yield of total compounds than PEE and SDE. The specific compound isolated by SPME, which due to effective fiber, was much larger than that isolated by PEE or SDE. HS-SPME is a powerful tool for determining the volatile constitutes present in the traditional Chinese medicines.
Introduction
Traditional Chinese medicines have played an important role in clinical therapy. More and more interests have been re-attracted in recent years for their high pharmacological activity, low toxicity and rare complication (Wen et al., 1993). However, volatile components of traditional Chinese medicines make the isolation and measurement of the volatile constituents as well as quality control of crude drugs and their medical preparations extremely difficult. Traditionally, the analysis of volatile compounds from traditional Chinese medicines is usually preceded by the extraction of essential oil by steam distillation, and/or petrol ether extraction, which often requires a large amount of sample and takes several hours to complete.
The complex and time-consuming process for the preparation of samples sometimes further complicates the analytical results due to more influencing factors involved. Solid-phase microextraction (SPME) developed by Pawliszyn and coworkers in 1989, is a solventless extraction technique widely used in application of extraction from plants, food, biological and environmental samples (Zini et al., 2002; Arthur and Pawliszyn, 1990; Belardi and Pawliszyn, 1989; Cai et al., 2001; Jayatilaka et al., 1995). Headspace solid-phase microextraction (HS-SPME) also is a unique sample preparation technique, which eliminates most drawbacks to extracting organics, including high cost and excessive preparation time; in particular, HS-SPME is a simple and fast modern tool used to characterize the volatile fraction of aromatic and medicinal plants (Smith, 2003; Marriott et al., 2001). HS-SPME has diminished decomposition of plant compounds and cells, minimized activity of enzyme, and decreasing loss of those constituents. HS-SPME techniques offer a useful alternative to conventional techniques.
Zingiber officinale Rosc. (Zingiberaceae), a member of the tropical and subtropical Zingiberaceae, has been cultivated for thousands of years as a spice and for medicinal purposes. It is used extensively in traditional Chinese medicine to treat headaches, nausea and colds and in Ayurvedic and Western herbal medicinal practice for the treatment of arthritis, rheumatic disorders and muscular discomfort (College, 1985). Volatile phytochemical composition of rhizome of ginger were reported (Salgueiro et al., 2003; Maheshwari et al., 1986; Prakash et al., 1993; Meepagala et al., 2002; Bhuiyan et al., 2008), and their main composition is Zingiberene and its derivatives, and compounds of pharmacological activity of ginger are gingerols and its derivatives. If the compositions can reciprocally transform under specific conditions, it is necessary to elucidate biochemical pathways to important compounds, such as the ginger oils, in these plants by GC/MS and HPLC/MS, but sample preparation technique can reflect investigation result of the biochemical pathways of ginger. So, choice of sampling technique also is very important.
In the work discussed in this paper, to enable further understanding of the effects of different parameters, such as extraction fibers, extraction time, extraction temperature and particle size ranges, on HS-SPME of ginger. We compared three different extraction techniques including HS-SPME, petrol ether extraction (PEE) and steam distillation extraction (SDE) for GC-MS of volatile constituents from ginger.
Materials and Methods
Samples of rhizome of ginger were obtained comercially from Shuicheng of Guizhou Province, China. Samples were air dried, ground in a high-speed rotary cutting mill, and then screened to give fractions 40, 80, 120, and 160 μm in size, respectively.
SDE: The essential oil was prepared as follows: 100 g sample of 120 um particle size was weighted into a 1,000 mL distillation flask, 500 mL deionised water was added and the mixture was distilled for 4 hours. Oil was collected from the condenser and oil was diluted with 5 mL of n-hexane. Then the extracts were dried with anhydrous sodium sulfate. The essential oil was stored at -20°C until analysis.
Petrol ether extraction (PEE)
The sample (100 g of dried materials) was submitted to extract with petrol ether for 72 hours, using Soxhlet extraction method. The volatile distillate was collected over anhydrous sodium sulfate and refrigerated until time of analysis.
HS-SPME fiber screening
Before carrying out the optimization of the HS-SPME conditions for the analysis of volatile compounds of ginger rhizome, fiber screening was carried out. The silica fibers and the manual HS-SPME holder were purchased from supelco (Bellefonte, PA, USA). Four fibers were tested and compared: polydimethylsiloxane (PDMS, 100 um), polydimethylsiloxane (PDMS, 7 μm), polyacrylate (PA, 85 um), and carboxen-polydimethylsiloxane (CAR/PDMS, 75 um). The coating of all fibers was 1 cm long. Before GC-MS analysis, each fiber was conditioned in the injector of the GC system, according to the instructions provided by the manufacturer.
HS-SPME: A 0.1 g amount of ginger rhizome particle (depending on the experimental design) was hermetically sealed in a 4 mL screw top amber vial with a polypropylene hole cap and PTFE/silicone septa (supelco, Bellefonte, PA, USA) and in a thermostatic bath at the desired temperature (depending on the experimental design). Then, the SPME device was inserted into the sealed vial by manually penetrating the septum and the fiber (depending on the experimental design) was exposed to the plant material headspace during the extraction time (depending on the experimental design). For the preliminary fiber screening study, experimental conditions were set as Table I. After sampling, the SPME was immediately inserted into the GC injector and the fiber thermally desorbed. A desorption time of 3 min at 250°C was used in splitless mode. Before sampling, each fiber was reconditioned for 5 min in the GC injector port at 250°C.
GC/MS: GC-MS analyses were carried out by using a shimazu (Japan) GCMS-QP2010 gas chromatograph mass spectrometer with electron impact ionization mode. With a DB - 5 (30 m x 0.25 mm i.d. x 0.25µm) column, operating conditions for GC were as follows: helium (99.9%) was used as the carrier gas at a constant flow rate of 0.8 mL/min; temperature of injector 250°C and interface 260°C and split 1:15. Temperature programming was: 50°C, 5 min; 50-100°C, 3°C/min; 100-160°C, 4°C/min; 160-220°C, 5°C/min; 220°C, 15 min. The mass spectral analyses were performed at 70 eV and ion source temperature 260°C. For the Kovats index, a standard mixture C8 to C24 was used under the same conditions as the samples.
Qualitative and semi-quantitative analysis
The volatile substances in ginger rhizome were identified by comparing the retention times of the chromatographic peaks with those of authentic compounds run under the same conditions and by comparing the retention indices (as Kovats indices) with the literature data (Smith and Robinson, 1981; Kami et al., 1972; MacLeod and Pieris, 1984; Sakamura, 1987; Chyaui et al., 1992; Georgieva et al., 2005; Chen et al., 1986; Bartley et al., 2000; Yang et al., 2009). Peak enrichment on co-injection with authentic reference compounds was also carried out. The comparison of the MS fragmentation pattern with those of pure compounds and mass spectrum database search was performed using the National Institute of Standards and Technology (NIST147) MS spectral database, and Kovats index retention (Chyaui et al., 1992). The relative amounts of individual components are expressed as percent peak areas relative to total peak area.
The ion currents generated depend on the characteristics of the compound and for this reason the quantification was not completely true one. The results obtained by GC/MS might be used for characteristics of the biodiversity in the investigated organisms, as well as for quantitative comparisons between different groups of metabolites in them. This method is suitable for comparing the chemical composition of different organisms, because the deviations caused by the differences in the intensity of the mass spectral fragmentation will be identical (Georgieva et al., 2005).
Precision of HS-SPME
The precision of HS-SPME was studied with six replicate analyses of the essential oils in Z. officinale under the optimum conditions. The precision was expressed as the relative standard deviation (RSD) of the peak areas.
Result and Discussion
Since various parameters potentially affect the extraction process, the optimization of the experimental conditions represents a critical step in the development of HS-SPME. In fact, extraction fibers, extraction time, extraction temperature and particle size ranges are generally considered as the most important factors. The optimization of the method can be carried out step-by-step or by using an experimental design. Table I shows different conditions of experiments carried out with HS-SPME for extractions of ginger. All the selected factors were examined using a four-level orthogonal array design with an L416 (44) matrix. In general, a full evaluation of the effect of four factors from three levels on the yield needs 256 (44) experiments. In order to reduce the number of experiments, a L4 (44) orthogonal design graph was used (Table I).
Table I: Results of orthogonal test L16 (44)
| # | Fibers | Extraction time (min) | Extraction temperature (°C) | Particle size ranges (Dp) | Sum of peak areas |
|---|---|---|---|---|---|
| 1 | PDMS 7 µm | 10 | 50 | 120 | 2.5E + 8 |
| 2 | PDMS 7 µm | 20 | 40 | 160 | 3.0E + 8 |
| 3 | PDMS 7 µm | 30 | 80 | 40 | 3.5E + 8 |
| 4 | PDMS 7 µm | 40 | 60 | 80 | 3.3E + 8 |
| 5 | PDMS 100 µm | 10 | 40 | 40 | 2.6E + 8 |
| 6 | PDMS 100 µm | 20 | 50 | 80 | 4.2E + 8 |
| 7 | PDMS 100 µm | 30 | 60 | 120 | 9.8E + 8 |
| 8 | PDMS 100 µm | 40 | 80 | 160 | 8.4E + 8 |
| 9 | CAR/PDMS 75 µm | 10 | 60 | 160 | 0.8E + 8 |
| 10 | CAR/PDMS 75 µm | 20 | 80 | 120 | 2.1E + 8 |
| 11 | CAR/PDMS 75 µm | 30 | 40 | 80 | 4.8E + 8 |
| 12 | CAR/PDMS 75 µm | 40 | 50 | 40 | 2.2E + 8 |
| 13 | PA 85 µm | 10 | 80 | 80 | 2.7E + 8 |
| 14 | PA 85 µm | 20 | 60 | 40 | 5.2E + 8 |
| 15 | PA 85 µm | 30 | 50 | 160 | 3.0E + 8 |
| 16 | PA 85 µm | 40 | 40 | 120 | 5.6E + 8 |
In this study, interactions among variables were not incorporated in the matrix and focus was placed on the main effects of the four most important factors. The results of the HS-SPME experiments, based on responses of peak areas, are given in Table I. The influence of the extraction fiber on the composition of the extracts was studied. For all the analytes, the extraction fiber was found to be significant as the main effect. The mean values of the responses of peak areas for the corresponding factors at each level were calculated according to the assignment of the experiment Figure 1.

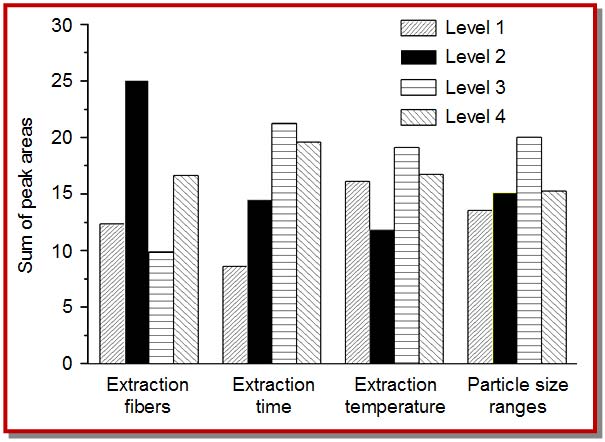

Figure 1: The responses of peak areas under orthogonal conditions (for designations of factors-extraction fibers, extraction time, extraction temperature and particle size ranges)
For example, the responses of peak areas of the four trials at PDMS 100 μm were evaluated as mean values of the corresponding four runs. The mean values of the four levels of each factor (e.g., extraction fibers) reveal how the responses of peak areas changes when the level of that factor is changed. Figure 1 shows the variations in responses of peak areas as a function of change in different levels of the factors studied. For the complete recovery of the main components of the plant, selective fiber is necessary. This is because different fibers, at constant condition, adsorb different compounds. The influence of extraction temperature on the composition of the extracts was studied. Higher temperature resulted in higher responses of peak areas. But excessively higher extraction temperature reduced extraction efficiency for desorption of part compounds. For all the analytes, the extraction time is the optimal sampling time. The results indicate that the responses of peak areas progressively increase with increasing the extraction time, but no significant increase in the response with farther increasing the extraction time. The influence of the particle size ranges of ginger on the composition of the extracts was studied. Extraction was performed with 40 um of particle size ranges, followed by 80, 120 and 160 um of particle size ranges. Results showed that 120 um of particle size ranges enhanced the extraction of the most responses of peak areas. Thus, the best conditions, obtained by preliminary test, for the HS-SPME were: extraction fiber: polydimethylsiloxane (PDMS, 100 μm); extraction temperature: 60°C; extraction time: 30 min; particle size ranges: 120 um. The product of No. 7 orthogonal test was analyzed by GC-MS.

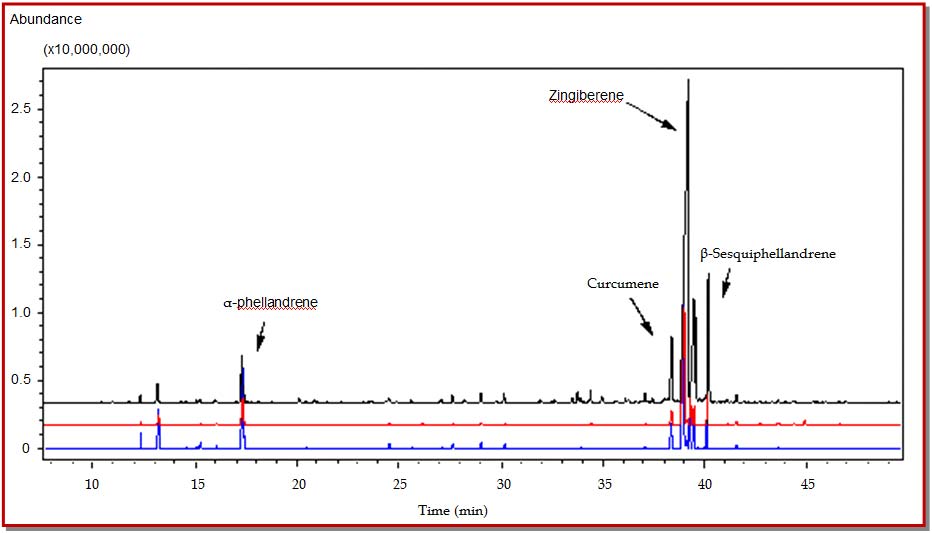

Figure 2: Additional chromatogram of ginger samples of HS-SPME (1), PEE (2) and SDE (3)
The GC-MS profiles of HS-SPME, PEE, and SDE were Figure 2a. Detailed identification and quantization of the compounds found in, produced by HS-SPME under No. 7 orthogonal test conditions were performed by GC-MS, as shown in Table II. Product obtained by PEE and SDE were also analyzed by GC-MS, respectively. The results are also shown in Table II for comparison. The volatile phytochemical composition of Z. officinale by HS-SPME (No. 7) was analysed by GC-MS, and camphene (1.1%), myrcene (0.2%) β-phellandrene (3.3%), curcumene (4.9%), zingiberene (53.1%), farnesene (8.6%), beta-bisabolene (6.0%), and beta-sesquiphellandrene (13.0%) were the major compounds; camphene (3.0%), myrcene (0.6%), beta-phellandrene (9.1%), curcumene (4.7%), zingiberene (39.0%), farnesene (7.6%), beta-bisabolene (5.9%), and beta-sesquiphellandrene (13.0%) were the major compounds by gas chromatographic analyses from PEE; camphene (5.7%), myrcene (1.0%), beta-phellandrene (15.1%), cineole (1.7%), (E)-citral(1.1%), curcumene (4.5%), zingiberene (35.1%), farnesene (6.5%), beta-bisabolene (5.2%), and beta-sesquiphellandrene (10.4%) were the major compounds by gas chromatographic analyses from SDE; volatile phytochemical composition rhizome of ginger were monoterpenes and sesquiterpene.
Table II: GC-MS analytical results of ginger obtained by HS-SPME, PEE and SDE
| # | TR | KIa | Compounds | Content of volatile composition (%) | RSD of HS-SPME (%) | ID | ||
|---|---|---|---|---|---|---|---|---|
| HS-SPME | PEE | SD | ||||||
| 1 | 12.3 | 938 | alpha-Pinene (ID: KI; 14) | 0.4 | 1.3 | 2.3 | NC | KI; PD |
| 2 | 13.2 | 951 | Camphene (ID: RS=97%) | 1.1 | 3 | 5.7 | 7.1 | MS |
| 3 | 14.3 | 971 | Bicyclo[3.1.0]hexane,4-methylene-1-(1-methylethyl) (ID: RS=93%) | - | - | 0.1 | NC | MS |
| 4 | 14.5 | 976 | 2(10)-Pinene (ID: KI; 15) | - | - | 0.2 | NC | KI; PD |
| 5 | 15.1 | 987 | 6-Methyl-5-hepten-2-one (ID: RS=94%) | 0.1 | 0.2 | 0.4 | NC | MS |
| 6 | 15.2 | 990 | Myrcene (ID: KI; 22) | 0.2 | 0.6 | 1 | NC | KI; PD |
| 7 | 16 | 1007 | alpha-Phellandrene (ID: 16) | 0.1 | 0.6 | 0.7 | NC | PD |
| 8 | 17.3 | 1032 | beta-Phellandrene (ID: 16) | 3.3 | 9.1 | 15.1 | 6.6 | PD |
| 9 | 17.4 | 1034 | Cineole (ID: 17) | 0.6 | 0.9 | 1.7 | NC | PD |
| 10 | 20.1 | 1086 | ND | 0.2 | 0.3 | 0.2 | NC | ND |
| 11 | 20.4 | 1093 | 2-Nonanone (ID: RS=97%) | 0.1 | 0.1 | 0.3 | NC | MS |
| 12 | 20.9 | 1100 | Linalol (ID: KI; 22) | 0.1 | 0.2 | 0.3 | NC | KI; PD |
| 13 | 21 | 1104 | 2-Heptanol, 6-methyl- (ID: RS=92%) | - | - | 0.1 | NC | PD |
| 14 | 23.4 | 1151 | 3,3-Dimethyl-1-octene (ID: RS=93%) | - | - | 0.1 | NC | PD |
| 15 | 24.5 | 1176 | Borneol | 0.3 | 0.6 | 0.8 | NC | PD |
| 16 | 24.8 | 1182 | 3-Cyclohexen-1-ol, 4-methyl-1-(1-methylethyl)- (ID: RS=91%) | - | - | 0.1 | NC | PD |
| 17 | 25.6 | 1198 | p-menth-1-en-8-ol (ID: 18; RS=94%) | 0.1 | 0.3 | 0.4 | NC | MS;PD |
| 18 | 26.1 | 1209 | Caprinaldehyde (ID: RS=94%) | - | 0.8 | - | NC | MS |
| 19 | 27.1 | 1231 | Citronellol (ID: RS=95%) | 0.1 | 0.2 | 0.3 | NC | MS |
| 20 | 27.7 | 1242 | Z-Citral (ID: 18; RS=94%) | 0.4 | 0.4 | 0.9 | NC | PD;MS |
| 21 | 28.2 | 1255 | Nerol (ID: 19; RS=92%) | 0.1 | 0.2 | 0.2 | NC | PD;MS |
| 22 | 29.1 | 1272 | (E)-Citral (ID: RS=95%) | 0.6 | 0.6 | 1.1 | NC | MS |
| 23 | 29.8 | 1285 | Bornyl acetate (ID: RS=93%) | 0.1 | - | 0.1 | NC | MS |
| 24 | 30.2 | 1293 | 2-Undecanone (ID: RS=95%) | 0.4 | 0.6 | 0.9 | NC | MS |
| 25 | 32 | 1337 | beta-Elemene (ID: KI; RS=93%) | 0.1 | - | - | NC | KI; MS |
| 25 | 32.7 | 1352 | Citronellol (ID: RS=94%) | 0.1 | - | - | NC | MS |
| 27 | 33.5 | 1372 | (+)-Cycloisosativene (ID: KI; RS=93%) | 0.3 | 0.2 | 0.2 | NC | KI; MS |
| 28 | 33.8 | 1379 | Copaene (ID: 20; KI) | 0.6 | 0.4 | 0.3 | NC | KI; PD |
| 29 | 33.9 | 1381 | Geraniol acetate( ID: RS=96%) | 0.3 | 0.1 | 0.2 | NC | MS |
| 30 | 34.4 | 1393 | 2,4-Diisopropenyl-1-methyl-1-vinylcyclohexane (ID: RS=96%) | 0.8 | 0.4 | 0.3 | NC | MS |
| 31 | 34.9 | 1405 | ND | 0.3 | 0.2 | 0.2 | NC | ND |
| 32 | 35.7 | 1423 | ND | 0.1 | - | - | NC | ND |
| 33 | 36.1 | 1433 | gamma-Elemene (ID: KI; 21) | 0.3 | - | - | NC | KI; PD |
| 34 | 36.3 | 1436 | ND | 0.1 | - | 0.1 | NC | ND |
| 35 | 36.9 | 1451 | ND | 0.1 | - | 0.1 | NC | ND |
| 36 | 37.1 | 1456 | 1,6,10-Dodecatriene, 7,11-dimethyl-3-methylene- (ID: RS=94%) | 0.7 | 0.5 | 0.5 | NC | MS |
| 37 | 37.4 | 1464 | Aromadendrene (ID: KI; 20) | 0.2 | 0.2 | 0.1 | NC | KI; PD |
| 38 | 38 | 1478 | Chamigrene (ID: RS = 95%) | 0.2 | - | - | NC | MS |
| 39 | 38.2 | 1482 | ND | 0.2 | - | - | NC | ND |
| 40 | 38.4 | 1487 | Curcumene (ID:17) | 4.9 | 4.7 | 4.5 | 6.2 | PD |
| 41 | 38.5 | 1490 | ND | 0.2 | 0.2 | - | NC | ND |
| 42 | 38.7 | 1494 | beta-Eudesmene (ID: RS = 94%) | 0.1 | 0.1 | 0.2 | NC | MS |
| 43 | 39.2 | 1507 | Zingiberene (ID: 16; 17) | 53.1 | 39 | 35.1 | 3.6 | PD |
| 44 | 39.5 | 1514 | Farnesene (ID: 16; 17) | 8.6 | 7.6 | 6.5 | 4.7 | PD |
| 45 | 39.6 | 1517 | beta-Bisabolene (ID: 16; 17) | 6 | 5.9 | 5.2 | 5.8 | PD |
| 46 | 39.7 | 1521 | ND | 0.3 | 0.3 | 0.2 | NC | ND |
| 47 | 39.9 | 1526 | (+)-Cadinene (ID: RS = 96%) | 0.2 | 0.3 | 0.2 | NC | MS |
| 48 | 40.3 | 1534 | beta-Sesquiphellandrene (ID: 23) | 13 | 12.3 | 10.4 | 5.1 | PD |
| 49 | 41.1 | 1555 | ND | 0.1 | 0.3 | 0.1 | NC | ND |
| 50 | 41.3 | 1560 | ND | 0.1 | 0.2 | 0.1 | NC | ND |
| 51 | 41.5 | 1566 | alpha-Selinene (ID: RS = 95%) | 0.5 | 1 | 0.8 | NC | MS |
| 52 | 42.7 | 1596 | ND | 0.1 | 0.4 | 0.2 | NC | ND |
| 53 | 43.6 | 1620 | ND | 0.1 | 0.7 | 0.3 | NC | ND |
| 54 | 43.9 | 1627 | beta-Cadin-4-en-10-ol (ID: RS = 93%) | - | 0.2 | - | NC | MS |
| 55 | 44.4 | 1638 | Caryophyllene (ID: RS = 92%) | 0.1 | 0.5 | 0.2 | NC | MS |
| 56 | 44.8 | 1649 | Zingiberone (ID: 18) | - | 1.2 | - | NC | PD |
| 57 | 45.3 | 1662 | beta-Eudesmol (ID: RS = 95%) | - | 0.3 | 0.1 | NC | MS |
| 58 | 46.6 | 1693 | trans-alpha-Bergamotene (ID: RS = 96%) | 0.1 | 0.8 | 0.2 | NC | MS |
| 59 | 46.9 | 1703 | 4-(2,2-Dimethyl-6-methylenecyclohexyl)butanal (ID: RS = 95%) | - | 0.3 | - | NC | MS |
| TR = retention time; KI = Kovats indices; ND = not identified; ID = means of identification; RS = reliability to standard MS (%); PD = published Data; MS = mass spectral data; NC not calculated; 14, Smith et al.,1981; 15, Kami et al.,1972; 16, MacLeod et al., 1984; 17, Sakamura et al., 1987; 18, Chyaui et al., 1992; 19, Georgieva et al., 2005; 20, Chen et al., 1986; 21, Bartley et al., 2000; 22, Yang et al., 2009; 23, Bhuiyan et al., 2008. | ||||||||
Different methods of natural products extraction yield different efficiencies; Figure 2 shown by the results, the content of composition of the HS-SPME, PEE and SDE of rhizome of ginger were different. By comparing the composition of the HS-SPME product with the PEE and SDE, higher levels of sesquiterpene were found in the HS-SPME and higher levels of monoterpenes were found in the SFE and PEE. Table I showed that zingiberene content of the HS-SPME is considerable and the relative percentage of zingiberene is 53.1%. However, the relative percentage of zingiberene this compound was 39.0 and 35.1%, respectively. On the other hand, Figure 3 showed that, for main monoterpenes (e.g., camphene, myrcene, and β-Phellandrene), the HS-SPME always is lowest, and the PEE is always lower, and the SDE is always highest. For example, β-phellandrene of the HS-SPME, the PEE and the SDE was 3.3, 9.1 and 15.1%, respectively. By contraries, for main sesquiterpene (curcumene, zingiberene, farnesene, β-bisabolene, and β-sesquiphellandrene) the HS-SPME always is highest, and the PEE is always lower, and the SDE is always lowest. For example, zingiberene of the HS-SPME, the PEE and the SDE was 53.1, 39.0 and 35.1%, respectively. The results were different from each other by because of the different methods of HS-SPME, PEE, and SDE in dealing with the extract, which can due to more influencing factors involved. For examples, fiber material of HS-SPME straightly influences adsorption of compound species, and temperature also influences equilibrium of adsorption and desorption of compounds.
Figure 3: Comparison of the mainly volatile components extracted by SH-SPME, PFE and SDE
Choosing a fiber with suitable polarity, depending on the nature of the target compounds, is a very important factor in headspace analysis. In this work, the most effective fiber for HS-SPME was PDMS. The effects of different parameters on the HS-SPME sampling from rhizome of ginger were also studied. The results showed that sampling temperature is the dominant factor for the HS-SPME of the volatile compounds of rhizome of ginger; this could be due to an increase in less volatile compounds in the headspace which might compensate for the decrease in adsorption induced by high temperatures. The complex and time-consuming process for the preparation of PEE and SDE sometimes further complicates the analytical results due to more influencing factors involved.
The HS-SPME-GC-MS method, developed and applied in this work, proved to be a simple, speed and convenient tool for the purpose of fingerprinting characteristic of the volatile composition of traditional Chinese medicines. Large amounts of sesquiterpenes and lesser amounts of monoterpenes are responsible for the characteristic aroma of ginger. The qualitative profile of the volatile compounds of rhizome of ginger was similar, but their relative abundance showed several differences. This work is a first step which opens the perspective of further studies on the aroma composition of rhizome of ginger.
Conclusion
HS-SPME followed by GC–MS is suited to the extraction and semi-quantitative analysis of volatiles from rhizome of ginger.
Acknowledgement
The language edited was revised by International Science Editing.
