In vitro antiviral effect of fructopyrano-(1→4)-glucopyranose from Radix isatidis on infuenza virus A

  • Qin Sun Department of Pharmaceutics of Chinese Medicine, Luzhou Medical College, Luzhou 646 000
  • Pi Xian Shui Department of Pharmaceutics of Chinese Medicine, Luzhou Medical College, Luzhou 646 000
  • Han Bin Li Henan College of Chinese Medicine, Zhengzhou 450 008
  • Si Jin Yang Affiliated Hospital of Chinese Medicine, Luzhou Medical College, Luzhou 646 000, China.
  • Ming Hua Liu Department of Pharmaceutics of Chinese Medicine, Luzhou Medical College, Luzhou 646 000
  • Shi Jing Zhang Department of Pharmaceutics of Chinese Medicine, Luzhou Medical College, Luzhou 646 000
Keywords: Fructopyrano-(1-4)-glucopyranose, Radix Isatidis, influenza virus A, anti-viral effect
DOI: 10.3329/bjp.v7i3.11228

Abstract

To investigate the in vitro antiviral effect of fructopyrano-(1→4)-glucopyranose (FG) from traditional Chinese medicine Radix isatidis, dog kidney cells (MDCK) were with treated with either FG and then with virus (Group A); virus and then with FG (Group B); or FG and virus simultaneously (Group C). Results showed the in vitro cell protection rate and virus inhibition rate increased significantly with the increase of FG concentration when compared with cells without FG treatment (p<0.01). The antiviral effect was the best in Group C and that in Group A was superior to that in Group B. FG could exert significant inhibited effect on neuraminidase activity with the IC50 of 0.1 mmol/mL and on hemagglutinin of avian influenza virus with minimum inhibitory concentration of 3.1 mg/mL. Our findings indicate FG can confer obvious antiviral effects on influenza A virus in vitro

Introduction

Radix isatidis (Banlangen in Chinese), dried roots of Isatis indigotica Fort, is a valuable Chinese materia medica (CMM) with antibacterial and antiviral activities, improving immune function, antitumor effect, etc. Clinically, it is applied in the treatment of infections, especially viral infections. With the wide application of natural medicine, the pharmacological activities of R. isatidis and its active ingredients have been studied in-depth. Among the numerous active ingredients, fructopyrano-(1→4)-glucopyranose (FG) is a compound with potent immune activity and abundant in R. isatidis. FG was firstly isolated and purified from R. isatidis by our group and identified as a new disaccharide compound by NMR. Currently, there is no Chinese name for it and the structural formula is shown in Figure 1. FG is colorless and transparent with purity of >99% and molecular weight of 342. Preliminary study showed the antiviral activity of FG in vitro. In the present study, the antiviral activity of FG was evaluated by using a variety of measures.

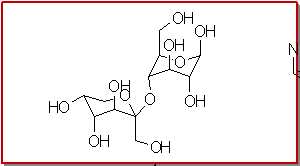

Figure 1: Chemical structural formula of FG

Materials and Methods

Virus

The influenza virus (A/PR8/34) was frozen in the Academy of Military Medical Institute of Infectious Diseases and Microbiology.

Cell culture

Dog kidney cells (MDCK) were purchased from the Academy of Military Medical Institute of Infectious Diseases Microbiology and maintained in Eagl,s MEM medium containing 10% fetal bovine serum, 100 U/mL penicillin and 100 μg/mL streptomycin, kanamycin and glutamine (pH 7.0~7.2) in an atmosphere with 5%CO2 at 37°C. Passaging was performed twice weekly.

Drugs and reagents

Ribavirinin (Lot 110308) were purchased from Sichuan Medco Pharmaceutical and peramivir from Yuancheng Pharmaceutical & Chemical Co. Ltd. Fetal and bovine serum albumin (Gibco Biotech Co., Ltd), tetramethyl thiazolyl blue (MTT), dimethyl sulfoxide, NP-40, 2-(N-morpholino) ethanesulfonic acid (MES) and substrate (MUNANA) (Sigma), receptor destroying enzyme (RDE) (H-Y Biotech Co., Ltd) were used in the present study.

Detection of cytotoxicity

MDCK cells were seeded into 96-well plate (100 μL/well; 1 × 104 cells/well). When cell confluence reached about 100%, the medium was removed and then treated with FG at different concentrations (starting at 100 mg/mL; 200 μL/well) and 4-wells were included in each group. Incubation was performed in an atmosphere with 5% CO2 for 48 hours at 37°C. The cell morphology was observed daily under an inverted microscope and the cytopathic effect (CPE) on MDCK cells was determined. Then MTT assay was performed. In brief, 20 μL of MTT solution (5 mg/mL) was added to each well followed by incubation in an atmosphere with 5% CO2 for 4 hours at 37°C followed by addition of 150 μL of dimethyl sulfoxide to each well and incubation under continuously shaking for 10 min. The optical density was measured at 490 nm on a microplate reader. The inhibition rate of cell growth was calculated as follow: IR = (ODcontrol  - ODtreatment)/ODcontrol  × 100%. The maximum non-toxic concentration (TC0) was also determined (Mosmann, 1983). Experiment was performed in triplicate and averaging was performed.

Determination of antiviral effect

MTT assay was performed to determine the antiviral effect of FG in three groups according to previously described (Knox et al., 2003; Oosterheert et al., 2005) .

1) Group A: MDCK cells were seeded into a 96-well plate and treated with FG at four different concentrations (the lowest concentration was TC0). In the positive control group, Ribavirin was added. Incubation was performed at 37°C for 2 hours. Following washing in PBS twice, 100 TCID50 of influenza virus was added. In the blank control, none was added, and virus was added in the absence of FG in the virus control groups. Incubation was done in an atmosphere with 5% CO2 for 2 hours at 37°C and then the medium was refreshed with drug-free medium followed by incubation in an atmosphere with 5% CO2 for 24 hours at 37°C. Optical density was measured as described in MTT assay above.

2) Group B: MDCK cells seeded into 96-well plate and then treated with 100 TCID50 of influenza virus followed by incubation in an atmosphere with 5% CO2 for 2 hours at 37°C. After washing in PBS twice, FG at four concentrations above was added with the lowest concentration of TC0. In the blank control group, no treatment was performed and in virus control group, only virus was added. In the positive control group, peramivir was added. Incubation was performed in an atmosphere with 5% CO2 for 2 hours at 37°C. Then, the medium was refreshed with drug-free medium followed by incubation in an atmosphere with 5% CO2 for 24 hours at 37°C and optical density was measured as described in MTT assay above.

3) Group C: Cells were independently mixed with FG at four concentrations with the lowest concentration of TC0. Blank control group and virus control group were also incluced. In the positive control group, peramivir was added. Incubation was performed in an atmosphere with 5% CO2 for 2 hours at 37°C. Then, the medium was refreshed with drug-free medium followed by incubation in an atmosphere with 5% CO2 for 24 hours at 37°C and optical density was measured as described in MTT assay above.

The cell protection rate (CPR) of FG on MDCK cells was calculated as follow: CPR= (ODexperiment—ODvirus control)/(ODblank control-OD virus control) × 100%; virus inhibition rate of FG = (OD experiment—OD virus control)/OD virus control × 100%.

Suppressive effect of FG on neuraminidase activity

The supernatant of influenza virus (bovine serum-free medium containing 1.2 mg/mL albumin, 5 μg/mL trypsin, ) was added to MDCK cells. When cell changes were present, the supernatant was collected by centrifugation at 1,000 rpm for 10 min followed by inactivation with NP-40 (final concentration: 0.1%). The supernatant was filtered through a 0.22 µm filter serving as the neuraminidase solution, which was stored at  70°C (Peng et al., 2005; Li et al., 2009).

Inhibition for neuraminidase of FG

Neuraminidase (10 μL) was added into 96-well plate followed by addition of FG (20 μL) at different concentrations and subsequent incubation for 1 hours. After addition of 20 µmol/L MUNANA (40 μL) and 33 mmol/L MES (30 μL) (total volume: 100 µL),  incubation was performed at 37°C for 30 min. Then, 25% alcohol containing 0.1 mmol/L glycine (pH= 10.7; 200 μL) was added to stop reaction. Blank control was also included. In the positive control group (MES), peramivir was added. In the detection of neuraminidase activity, sample solution of same volume was added. In the control group, medium of same volume was added. Neuraminidase activity was determined with a fluorescence microplate reader with EX at 355 nm, EM at 460 nm, required value of 20% and gain value of 20. The inhibition rate (IR) was calculated (Mosmann, 1983). The half inhibitory concentration (IC50) of FG on neuraminidase was calculated with the Bliss method (Nayak and Reichl, 2004).

Hemagglutination inhibition assay

PBS (pH 7.2) was added to a 96-well plate (25 μL/well), and 50 mL FG solution was added in the first tier which was dispensed by the serum (by RDE treatment, dilution of 1:10) and continuous multiproportion diluted until dumping 25 μL in the last one (No. 8). The first tier concentration was 50 mg/mL. Then 25 μL influenza virus (A/PR8/34) suspensions were added to each pore of 4 hemagglutination units, and it was covered at room temperature 1 hours after thoroughly misce bene. Eventually, adding 0.75% guinea pig red blood cell suspensions 50 μL which were dispensed by PBS buffer in each pore, and laying the drug control group (an action of only drugs without added liquid of influenza virus), PBS buffer control group (only the influenza virus suspensions and PBS buffer without added drugs) and serum control group (only serum and red cell suspensions of guinea pig), observing and recording after placed it in incubator for 60 min at 4°C.

Criteria for determination: (1)++++: Red blood cells arranged evenly on bottom; (2)+++: Red blood cells arranged evenly on bottom but the edge of cell layer was thin; (3) ++: Red blood cells formed a circle on the bottom, which was surrounded by a small agglutination block; (4) +: Red blood cells formed a group on the bottom without smooth edge; (5)-: Red blood cells formed a group on the bottom with smooth and regular edge.

Results

When the concentration of FG was lower than 12.50 mg/mL, there was no significant difference in cell proliferation between the FG group and control group, indicating that FG at <12.5 mg/mL has no toxic effect on MDCK cells.

In the present study, the antiviral effect of FG was determined by MTT assay and ribavirin treatment served as a positive control. Results showed FG could exert antiviral effect to a certain extent in three groups but the antiviral effect in Group C was the best and the antiviral effect in Group A was superior to that in Group B. Antiviral effect of FG is shown in Table I. 1) Group A: When compared with virus control group, the virus inhibition rate and cell protection rate following FG treatment were markedly increased (p<0.01). However, the virus inhibition rate and cell protection rate following FG treatment were inferior to those in the positive control group (p<0.05). 2) Group B: When compared with virus control group, the virus inhibition rate and cell protection rate following FG treatment were markedly increased (p<0.01). However, the virus inhibition rate and cell protection rate following FG treatment were inferior to those in the positive control group (p<0.05). 3) Group C: When compared with virus control group, the virus inhibition rate and cell protection rate following FG treatment were markedly increased (p<0.01). However, the virus inhibition rate and cell protection rate following FG treatment were inferior to those in the positive control group (p<0.05).

Table I: Virus inhibition rate and cell protection rate following FG treatment in vitro

Group Concentration
(mg/mL)
Preventive action Therapeutic action Direct action
OD
values
Cells
protection rate /%
Virus inhibition rate % OD
values
Cells protection rate /% Virus inhibition rate % OD
values
Cells protection rate /% Virus inhibition rate %
FG 1.6 0.796
(0.029)
64.9 50.7 0.756
(0.023)
55.8 49.1 0.829
(0.023)
72.1 63.5
3.1 0.808
(0.021)
67.4 59.4 0.763
(0.036)
57.4 50.5 0.843
(0.020)
75.3 66.3
6.2 0.815
(0.025)
69.1 60.7 0.775
(0.021)
60.1 52.9 0.861
(0.031)
79.4 69.8
12.5 0.826
(0.042)
71.5 62.9 0.785
(0.028)
62.3 54.8 0.871
(0.029)
81.6 71.8
Ribavirin 0.03 0.856
(0.035)
78.3 68.8 0.818
(0.034)
69.7 61.3 0.887
(0.016)
85.2 75.0
Blank ï¹£ 0.953
(0.050)
100.0 ï¹£ 0.953
(0.050)
100.0 ï¹£ 0.953
(0.049)
100.0 ï¹£
Virus ï¹£ 0.507
(0.043)
47.3 0 0.507
(0.043)
47.3 0 0.507
(0.043)
47.3 0

Suppressive effect on neuraminidase activity was observed following treatment with FG or peramivir. The dose-response curve between response rate and the Logarithmic dose was “S” shaped (Figure 2). The suppressive effect of FG was similar to that of peramivir. The IC50  of FG was 0.1 mmol/mL and that of peramivir was 0.003 nmol/mL.

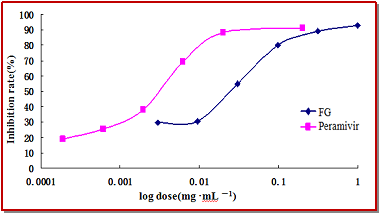

Figure 2: Dose-response relationship between FG and peramivir

FG had obvious inhibitory effect on influenza virus hemagglutinin and the minimum inhibitory concentration was 3.1 mg/mL. Non-specific agglutination was absent following serum treatment (Table II)

Table II:Inhibition of FG on hemagglutinin in influenza virus

Concentration Groups
(mg/mL) Experiment Drugs PBS buffer Serum
50 + - ++++ -
25 + - ++++ -
12.5 ++ - ++++ -
6.3 ++ - ++++ -
3.1 +++ - ++++ -
1.6 ++++ - ++++ -
0.8 ++++ - ++++ -
0.4 ++++ - ++++ -

Discussion

Influenza is a communicable acute upper respiratory tract disease which is caused by influenza virus. It is highly contagious, can spread rapidly and often endemic. R. isatidis has been extensively used in China for over 2000 years, especially for antivirus with definite clinical effectiveness. However, the selection of compounds for prevention or treatment of influenza virus infection is still limited and these compounds are susceptible to cause drug resistance and have side effects. Thus, to develop novel antiviral drugs has been an important issue in clinical practice.

Co-culture of cells and virus and measurement of cell proliferation by MTT assay have been a main method to screen antiviral drugs in vivo. To more objectively, sensitively and accurately evaluate the antiviral effect of FG, MTT assay was also performed and FG was used for prevention and treatment of virus infection. Our findings suggested FG could exert suppressive effect on influenza A virus to a certain extent. The suppressive effect when cells were treated with FG and virus at the same time was the best and the suppressive effect in prevention of virus infection was also superior to that in treatment of virus infection. The in vitro cell protection rate and virus inhibition rate and virus inhibition rate of FG increased with the increase concentration of FG concentration, which were significantly different from those of cells with virus treatment alone (p<0.01). Meanwhile, ELISA was performed to determine the suppressive effect of FG on neuraminidase activity in influenza A virus. Results showed the IC50 was 0.1 mmol/mL. Neuraminidase is a key enzyme affecting the replication, infection and pathogenesis of influenza A virus. Thus, inhibition of neuraminidase activity can be used to control the symptoms and spreading of influenza A virus infection (Colman, 1994; Cao et al., 2002). Currently, substrate fluorescence detection (FL-MU-NANA method) is one of methods for the detection of neuraminidase activity in vitro, and has become an important method to screen and evaluate antiviral activity of anti-influenza virus drugs including herbals (Peng and Li, 1999). In the present study, FL-MU-NANA method was employed to measure the biological activity of NA. Our results showed FG had antiviral effect and neuraminidase may be one of targets of FG.

The influenza virus mainly consists of nucleocapsid and envelope. A glycoprotein in the envelope is a key protein to bind to receptors on cells of host and can form agglutination with red blood cells of animals. If the serum hemagglutinin antibody can specifically bind to the antigens on the virus, the interaction between hemagglutinin on virus and receptors on red blood cells is interrupted and red blood cell aggregation is then inhibited. In the present study, virus (hemagglutinin) was pre-treated with FG and then with red blood cells of guinea pig, and agglutination was observed. Results showed FG at effective concentration could significantly inhibit the hemagglutinin of virus in vitro, and the minimum inhibitory concentration was 3.1 mg/mL.

Conclusion

Contributions

Sun Qin and Shui Pi Xian contributed equally in this study.

References

CaoCao HP, Tao PZ, Du GH. Establishment and application of high throughput screening model for influenza virus neuraminidase inhibitors in vitro. Acta Pharm. 2002; 37: 930-33.

Colman PM. Influenza virus neuraminidase: Structure, antibodies, and inhibitors. Protein Sci. 1994; 3: 1687-96.

Knox YM, Suzutani T, Yosida I, Azuma M. Anti-influenza virus activity of crude extract of Ribes nigrum L. Phytother Res. 2003; 17: 120-22.

Li HB, Yan D, Wang JB, Wang JY, Bei ZC, Wei L, Xiao XH. Study on the biological evaluation of Radix Isatidis based on neuraminidase activity assay. Acta Pharm Sin. 2009; 44: 162-66.

Mosmann T. Rapid colorimetric assay for cellular growth and survival: Application to proliferation and cytotoxicity assays. J Immunol Methods. 1983; 65: 55-63.

Nayak DP, Reichl U. Neuraminidase activity assays for monitoring MDCK cell culture derived influenza virus. J Virol Methods. 2004; 122: 9-15.

Oosterheert JJ, van Loon AM, Schuurman R, Hoepelman AI, Hak E, Thijsen S, Nossent G, Schneider MM, Hustinx WM and Bonten MJ. Impact of rapid detection of viral and atypical bacterial pathogens by real-time polymerase chain reaction for patients with lower respiratory tract infection. Clin Infect Dis. 2005; 41: 1438-44.

Peng L, Wang BC, Ren P. Reduction of MTT by avonoids in the absence of cells. Colloids and Surfaces B: Biointerfaces. 2005; 45: 108-11.

Peng Y, Li WK. Recent development of studies on antivirus phytomedicines in abroad. World Phytomed. 1999; 14: 7-10.
