Anti-cancer and apoptosis-inducing effects of Moringa concanensis using hepG2 cell lines
Abstract
The objective of the present investigation is focused on the anti-cancer activity of the ethanolic crude extract of Moringa concanensis leaf and bark against HepG2 cell line. The study was facilitated by collecting the plant sample and subjected to ethanol crude extraction. The anticancer activity of the crude extracted sample against HepG2 cell line was examined by MTT assay. The study confirms that the leaf crude extract of M. concanensis has pronounced anti-cancer potential against HepG2 cell lines while compared to that of the bark extract. The plant investigated possesses remarkable anticancer activity and hence isolation of the compound contributing to the activity may lead to develop at a novel and natural phytomedicine for the disease.
Introduction
Hepatocellular carcinoma (HCC) is the fifth most common tumor worldwide and the incidence of HCC has been rising over the past few decades in some areas such as Europe, USA and eastern Asian countries (Marrero, 2006). Malignant gliomas are one of the more lethal forms of cancer. An estimated 18,000 new cases of brain and central nervous system tumors are diagnosed each year and approximately 13,000 people died of their disease in the United States alone (American Cancer Society, 2006). Despite advances in diagnosis and standard therapies such as surgery, radiation, and chemotherapy, HCC remains a formidable challenge for clinical therapy systems (Okita, 2006; Bosch et al., 1999; Zhu, 2003; Obi et al., 2006).
The natural products including medicinal plants have become more and important in primary health care. Many pharmacognostical and pharmacological investigations are carried out to identify the new drugs or to find out new lead structures for the development of novel therapeutic agents for the treatment of human diseases such as cancer and infectious diseases (Newman et al., 1996).
Lung, breast and colon cancer are the three most common cancers worldwide, with an increasing annual incidence (Bingham and Riboli, 2004). Carcinogenesis is composed of a multistage process of initiation, promotion and progression. In the steady-state, cell division must be counterbalanced by cell death. This important active process of cell death is known as apoptosis or programmed cell death (Kerr, 1971). Apoptosis has been recognized as a tightly controlled mechanism involving death factors and death receptors in the control of cell proliferation. The recognition of tumor development involves an imbalance between cell proliferation and apoptotic cell death, which is the current dogma in tumor biology (Kanzler and Galle, 2000). HCC derived from hepatocytes is one of the most common malignancies. It is characterized by its high incidence in hepatitis B virus-associated cirrhotic liver disease and other risk factors such as hepatitis C virus, aflatoxin, sex, hormones and some metabolic diseases. The different epidemiology distributions of HCC have facilitated that the identification of these associated risk factors (Johnson, 1996; Graham and Alistar, 1996). Thus, a great deal of research has been turned towards novel chemotherapeutic drugs from the plant kingdom in search of cancer inhibitors and cures. The bioactive components obtained from various herbal plants have high potential in preventing and controlling carcinogenesis (Pezzuto, 1997).
One promising new source of therapeutic agents has been discovered in plant secondary metabolites, irregularly occurring compounds that characterize certain plants or plant species (Seigler, 1998). The secondary metabolite has been focused upon their medicinal properties (Harborne, 2000). Studies of flavonoids have produced the most compelling data for the antitumor activities of plant secondary metabolites in various types of cancers (Yang et al., 2001), and several flavornoids have been shows that to inhibit cancer development while exhibiting antioxidant activities in various animal models (Kuo, 1997; Lahiri-Chatterjee et al., 1999; Ingram et al., 1997; Messina et al., 1994; Barnes et al., 1995). Numerous cancer research studies have been conducted using traditional and folklore medicinal plants in an effort to discover new therapeutic agents that lack the toxic side effects associated with current chemotherapeutic agents. One of the more versatile plants used as a source of flavonoids is the root of the traditional Chinese medicinal herb Baikal skullcap (Scutellaria baicalensis), a member of the mint family (Chung et al., 1995). We previously reported the phytochemical evaluation and antimicrobial activity of Moringa concanensis leaf (Balamurugan and Balakrishnan, 2013b) and bark (Balamurugan and Balakrishnan, 2013a) extract. The objective of the present study was to evaluate the anticarcinogenic properties and mode of action of the M. concanensis leaf and bark crude extract in a human hepatoma cell line (HepG2).
Materials and Methods
Collection of plants
The M. concanensis plant was collected in the month of March 2010 from the Esanai Village of Perambalur District, Tamil Nadu, India, surrounded by South Arcot in the North (Villupuram and Cuddalore), Trichirrappalli on south, and Salem on west and Thanjavur on the east and lies between Lat.11" 14' N; Long. 78" 56' E. M. concanensis is widely distributed on dry lands
Identification and confirmation of the plant
The plant material was identified by using the methods described by Jain (1983). The samples of plants were collected, identified and voucher specimens were deposited in the Department of Biotechnology, Sri Vinayaga College of Arts and Science, Ulundurpet, Tamil Nadu.
Preparation of ethanol extract
Required quantity (50 g) of powder was weighted and transferred to stopper flask and treated with the ethanol until the powder is fully immersed. The flask was shaken every hour for the first 6 hours and then it was kept, in shaken after 24 hours. This process was repeated for three days and then the extract was filtered. The extract was collected and evaporated to dryness by using a vacuum distillation unit. The final residue thus obtained was then subjected for further analysis
Cell growth inhibition study using the MTT assay
Cell growth inhibition of leaf and bark crude extracts were analyzed using the 3-(4,5-dimethylthiazol-2-yl)-2, 5- diphenyltertrazolium bromide (MTT) assay. Briefly, HepG2 cells were seeded in 96 well plates at a density of 6 x 103 cells per well. After treatment with 2, 4, 6, 8, 10, 20, 30, 40, 50 and 100 µg/mL of leaf and bark crude extracts for 48 hours, 20 µL MTT (5 mg/mL) was added. Four hours later, 100 µL DMSO was added to each well to dissolve the resulting formazan crystals. Absorbance was read at 490 nm using an enzyme-linked immunosorbent assay reader (SpectraMax; Molecular Devices, USA).
Data were collected from the triplicate separate experiments and the percentage of leaf and bark crude extracts induced cell growth inhibition was determined by comparison to DMSO-treated control cells (Mosmann, 1983).
Assays for cell growth
Anticancer activity was determined using MTT assay (Alley et al., 1988). 40 to 50% cells were seeded on 96-well plates and cultured for 24 hours inside the CO2 incubator at 37°C. After 24 hours of incubation media was removed and crude extract was added at various concentrations and incubated inside the CO2 incubator for 24, 48 and 72 hours. Then MTT was added with media (500 µL) to each well. It was kept inside the CO2 incubator for 2 hours in dark. Then 50 µL of DMSO was added to each well. Then it was shaken vigorously for 10 to 20 min for cells to lyses. The plate was read in ELISA Reader - measure OD in 570 nm. The cell growth in untreated control cultures was considered 100% and the growth of each treated group was compared relative to this value with positive control.
Analysis of DNA fragmentation
Cells were seeded at 2 x 105 cells/well in 6-well plate 24 hours before treatment. After 20, 40, or 60 min of incubation with cured extract the cells were harvested and then processed for analysis of DNA fragmentation. The cells were lysed with 0.5% sarcosyl in 50 mM Tris-Hcl and 10 mM EDTA (pH 8.0) in the presence of 0.5 mg/mL proteinase K. After a one hour of incubation at 50ºC, RNaseA (0.15 mg/mL) was added to each sample. The lysate were analyzed by electrophoresis on 1.2% agarose gels containing 0.5 g/mL ethidium bromide (Shi, 1989).
Results
The results demonstrated that leaf and bark crude extracts had significant cytotoxicity on HepG2 cell line. Leaf and bark crude extracts decreased the viability of HepG2 cells in a dose-dependent manner. The maximum inhibition of cell growth (93.7% with IC50) was observed at the concentration of 100 µg/mL of leaf crude extract and whereas inhibition of cell growth (93.44% with IC50) was observed at the concentration of 100 µg/mL of barks crude extract.
The decreased growth rates of HepG2 cells of about 26.9, 34.8, 48.3, 59, 61.5, 64.3, 69.8, 81.9, 84.4 and 93.7 percentage observed at the leaf crude extract concentration of 2, 4, 6, 8, 10, 20, 30, 40, 50 and 100 µg/mL, respectively and whereas growth rates of HepG2 cells of about 6.1% 34.9 , 48.3 , 57.1 , 59.2 , 69.8, 77.1 , 87.0 , 88.5 and 93.4 percentage observed at the bark crude extract concentration of 2, 4, 6, 8, 10, 20, 30, 40, 50 and 100 µg/mL, respectively. All the concentrations used in the experiment (leaf and bark crude extracts) decreased the cell viability significantly (p<0.05) in a concentration-dependent manner (Figure 1 and 2).

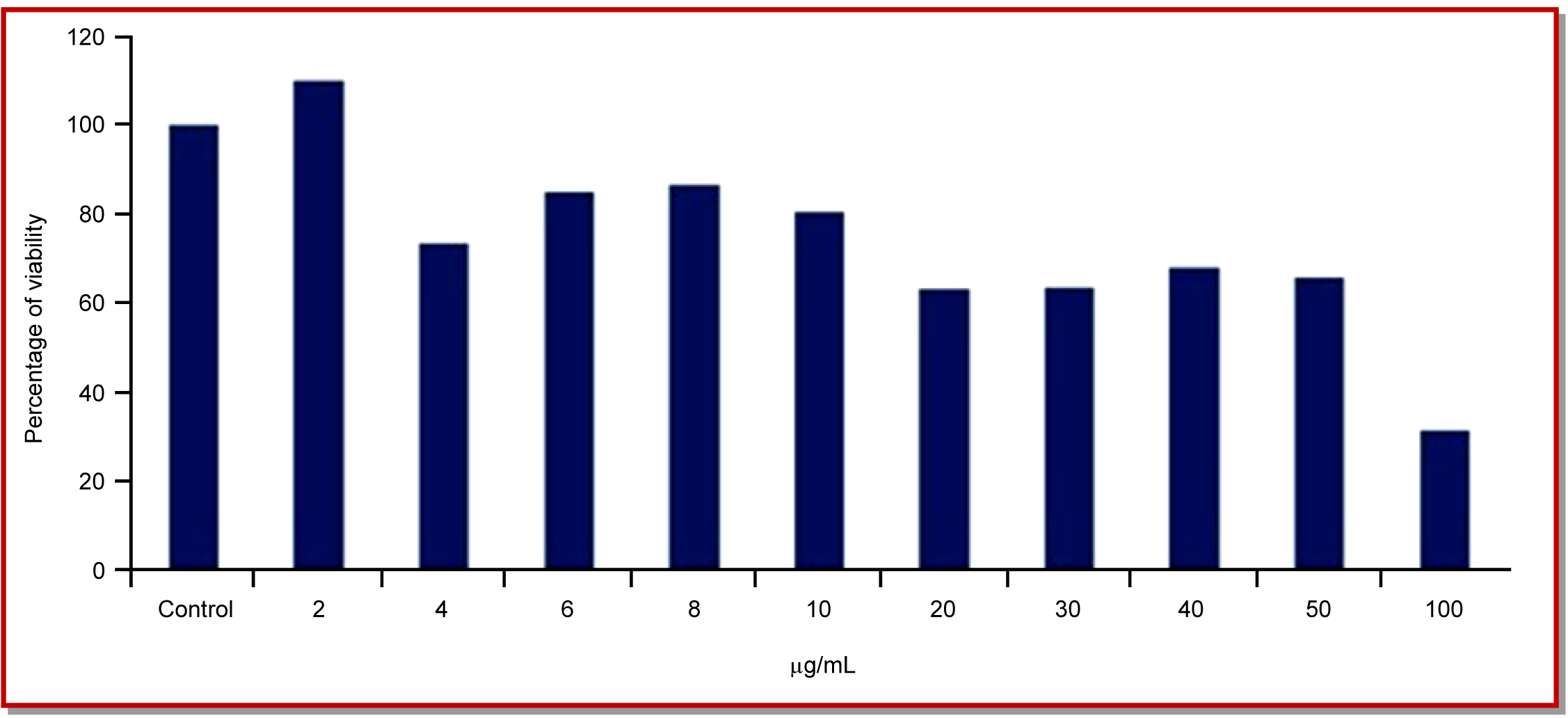

Figure 1: Cytotoxic effect of M. concanensis bark crude extracts against HepG2 cell line
Figure 2: Cytotoxic effect of M. concanensis leaf crude extracts against HepG2 cell line
Treatments with leaf and bark crude extracts (100 µg/mL) effectively decreased the total number of HepG2 cells and were accompanied by cell shrinkage, condensed nuclei, blebbing and shape changes (Figure 3). When the cells were stained with trypan blue, which can discriminate between apoptosis and necrosis, condensed nuclei, blabbing, indicators of typical apoptosis manifestation were observed in plant crude extracts treated cells.

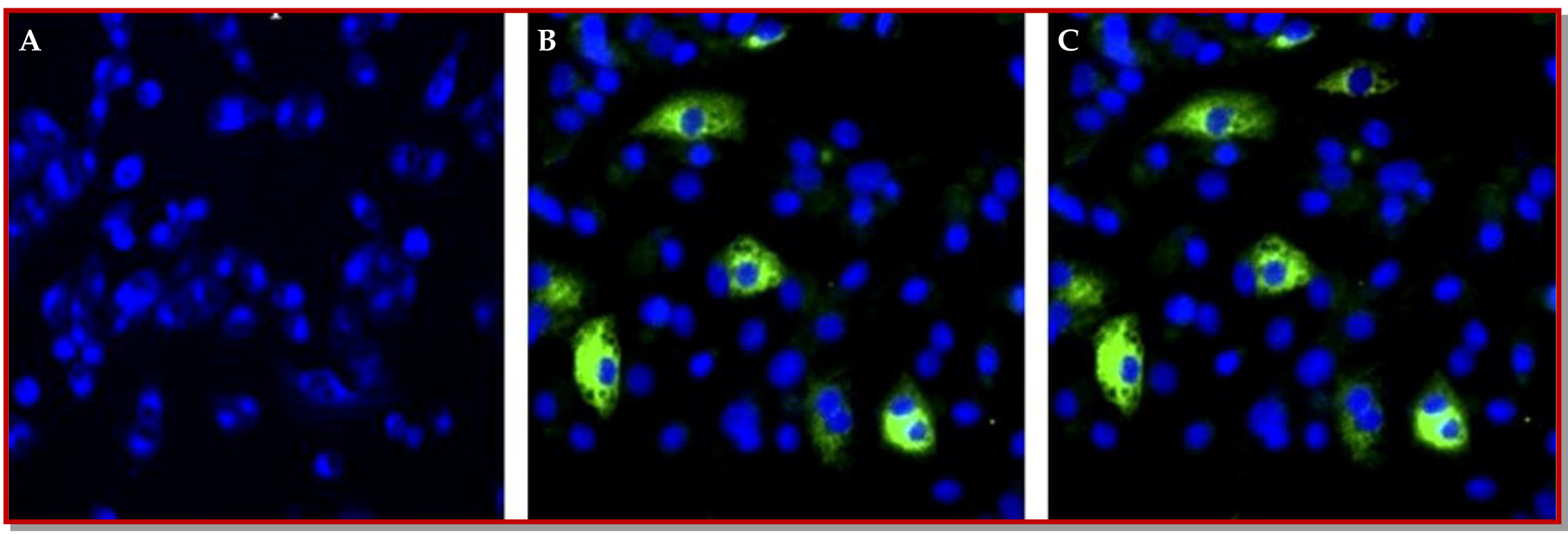

Figure 3: Cytotoxicity and apoptotic activity of M. concanensis bark and leaf plant crude extracts against HepG2 cell line
(A) Controls cells; (B) bark crude extracts treated HepG2 cells; (C) leaf crude extracts treated HepG2 cells showing cytotoxicity and apoptotic activity
Leaf crude extract treated HepG2 cells exhibited more than 93.7% increase in apoptosis and whereas bark crude extract treated HepG2 cells exhibited more than 93.4% increase in apoptosis and investigation of the staining pattern indicated that the predominant cause of cell death in HepG2 was due to apoptosis.
To test whether leaf and bark crude extracts induced similar cell death in normal cells. 30 min of incubation with leaf and bark crude extracts (100 µg/mL) resulted in only 16.5% cell death. Concentrations used in the experiment (leaf and bark crude extracts) decreased the cell viability were not significantly (p<0.05) in a concentration 100 µg/mL.
To determine the mode of growth inhibition in HepG2 cells induced leaf and bark crude extracts, whether leaf and bark crude extracts were investigated if they induced inter nucleosomal degradation of DNA, a characteristic of apoptosis. In the present study reveals that the DNA ladders appeared in leaf and bark crude extracts treated HepG2 cells after exposure to concentrations of 100 µg/mL for 48 hours. The control cell of HepG2 shows any DNA fragmentation (Figure 4). The results of DNA fragmentation in leaf and bark crude extracts induced apoptotic cells which were confirmed by DNA ladder assay.
Figure 4: Apoptotic DNA fragmentation of HepG2 cells (1) Control, (2) leaf treated showing apoptotic DNA fragmentation of HepG2 cell line (3) bark treated showing apoptotic DNA fragmentation of HepG2 cell line
Discussion
A major complication of chemotherapy is toxicity to normal cells, which is due to the inability of drugs to differentiate between normal and malignant cells. This often impacts the efficacy of the treatment and even it makes it impossible to cure the patients. One of the requisite of cancer chemo preventive agent is elimination of damaged or malignant cell through cell cycle inhibition or induction of apoptosis without or with less toxicity in normal cells (Srivastava and Gupta, 2006; Tian et al., 2006).
Apoptosis is a tightly regulated process, which is involves the changes in the expression of a distinct set of genes (Cummings et al., 1997; Tong et al., 2004). Two of the major genes responsible for regulating mitochondrial apoptosis pathway are antiapoptotic Bcl-2 and proapoptoticbax (Zhong et al., 1993; Bruce-Keller et al., 1997; Wolter et al., 1997).
Large scale screening of plant crude extracts on cell culture is an important initial step to determine their potential efficacy in clinical application. Several reports have shows that plant crude extracts replicate at tumor sites under hypoxic conditions and stimulate the host immune response and gene expression and leads to the inhibition of tumor growth.
Apoptotic cells often produce a unique ladder composed of nucleotide fragments which can be visualized by DNA-agarose gel electrophoresis. In general, cytotoxic drugs induce an enormous breakage of DNA into oligonucleosome fragments. The degradation of DNA down into oligonucleosomal fragments is a late event of apoptosis (Compton, 1992; Earnshaw, 1995; Lim et al., 2006). Thus, the leaf and bark crude extracts induces DNA damage in HepG2 cells, thereby causing apoptosis.
Conclusion
The result shows that the ethanolic extract of the M. concanensis was non toxic to normal cell and also anticancer activities individually. This study points to the probable anticancer potentials of ethanolic leaf and bark extracts of M. concanensis.
Acknowledgement
The authors are thankful to Mr. M. Rajiv Gandhi, Research scholar, Anna University, Chennai, Tamil Nadu, India for successful completion of the work and assistance.
References
Alley MC, Scudiero DA, Shoemaker, RH, Paull KD, Monks A, Tierney S. Evaluation of a soluble tetrazolium/formazan assay for cell growth and drug sensitivity in culture using human and other tumor cell lines. Cancer Res. 1988; 48: 4827-33.
American Cancer Society. Cancer facts and figures. Atlanta, American Cancer Society, 2006.
Balamurugan V, Balakrishnan V. Evaluation of phytochemical, Pharmacognostical and antimicrobial activity from the bark of Moringa concanensis Nimmo. Int J Curr Microbiol App Sci. 2013a; 2: 117-25.
Balamurugan V, Balakrishnan V. Preliminary phytochemicals, pharmacognostic evaluation and antimicrobial activity of Moringa concanensis nimmo leaf. Global J Bio-Sci Biotechnol. 2013b; 2: 243-47.
Barnes S, Peterson TG, Coward L. Rationale for the use of genistein-containing soy matrices in chemoprevention trials for breast and prostate cancer. J Cell Biochem. 1995; 22S: 181-87.
Bingham S, Riboli E. Diet and cancer: the European prospective investigation into cancer and nutrition. Nat Rev Cancer. 2004; 4: 206-15.
Bosch X, Ribes J, Borras J. Epidemiology of primary liver cancer. Semin Liver Dis. 1999; 19: 271-85.
Bruce-Keller AJ, Begley JG, Fu W, Butterï¬eld DA, Bredesen DE, Hutchins JB, Hensley K, Mattson MP. Bcl-2 protects isolated plasma and mitochondrial membranes against lipid peroxidation induced by hydrogen peroxide and amyloid b-peptide. J Neurochem. 1997; 70: 31-39.
Chung CP, Park JB, Bae KH. Pharmocological effects of methanolic extract from the root of Scutellaria baicalensis and its flavonoids on human gingival fibroblast. Planta Med. 1995; 61: 150-53.
Compton MM. A biochemical hallmark of apoptosis: Internucleosomal degradation of the genome. Cancer Met Rev. 1992; 11: 105-19.
Cummings MC, Winterford CM, Walker NI. Apoptosis. Am J Surg Pathol. 1997; 21: 88-101.
Earnshaw WC. Nuclear changes in apoptosis. Curr Opin Cell Biol. 1995; 7: 337-43.
Graham WC, Alistar DB. Pathogenesis of primary hepatocellular carcinoma. Eur J Gastroenterol Hepatol. 1996; 8: 850-55.
Harborne JB. Arsenal for survival: Secondary plant products. Taxon 2000; 49: 435-49.
Ingram D, Sanders K, Kolybaba M, Lopez D. Case control study of phytooestrogens and breast cancer. Lancet 1997; 350: 990-94.
Jain SK. Ethnobotany in India: An overview. Howrah, India, BSI, 1983, pp 1-37.
Johnson PJ. The epidemiology of hepatocellular carcinoma. Eur J Gastroenterol Hepatol. 1996; 8: 845-49.
Kanzler S, Galle PR. Apoptosis in the liver. Cancer Biol. 2000; 10: 173-84.
Kerr JF. Shrinkage necrosis: A distinct mode of cellular death. J Pathol. 1971; 105: 13-20.
Kuo SM. Dietary flavonoid and cancer prevention: Evidence and potential mechanism. Crit Rev Oncogenesis. 1997, 8: 47-69.
Lahiri-Chatterjee M, Katiyar SK, Mohan RR, Agarwal R. A flavonoid antioxidant, silymarin, affords exceptionally high protection against tumor promotion in the SENCAR mouse skin tumorigenesis model. Cancer Res. 1999; 59: 622-32.
Lim HY, Lim YH, Cho YH, Lee CH. Induction of apoptosis in the HepG2 cells by HY53, a novel natural compound isolated from Bauhinia forficata. J Microbiol Biotechnol. 2006; 16: 1262-68.
Marrero JA. Hepatocellular carcinoma. Curr Opin Gastroenterol. 2006; 22: 248-53.
Messina MJ, Persky V, Setchell KDR, Barnes S. Soy intake and cancer risk: A review of the in vitro and in vivo data. Nutr Cancer. 1994; 21: 113-31.
Mosmann T. Rapid colorimetric assay for cellular growth and survival: Application to proliferation and cytotoxicity assays. J Immunol Methods. 1983; 65: 55.
Newman DJ, Cragg GM, Snader KM. Natural products as sources of new drugs over the period 1981-2002. J Nat Prod. 2003; 66: 1022-37.
Obi S, Yoshida H, Toune R, Unuma T, Kanda M, Sato S, Tateishi R, Teratani T, Shiina S, Omata M. Combination therapy of intraarterial 5-fluorouracil and systemic interfere-on-alpha for advanced hepatocellular carcinoma with portal venous invasion. Cancer 2006; 106: 1990-97.
Okita K. Clinical aspects of hepatocellular carcinoma in Japan. Intern Med. 2006; 45: 229-33.
Pezzuto JM. Plant-derived anticancer agents. Biochem Pharmacol. 1997; 53: 121-33.
Seigler DS. Plant secondary metabolism, Kluwer Academic, Boston, 1998.
Shi YF, Sahai BM, Green DR. Cyclosporine A inhibits activation induced cell death in T-cell hybridomas and thymocytes, Nature 1989; 339: 625-29.
Srivastava. JK, Gupta S. Tocotrienolrich fraction of palm oil induces cell cycle arrest and apoptosis selectively in human prostate cancer cells. Biochem Biophys Res Commun. 2006; 346: 447-53.
Tian Z, Pan RL, Si JY, Xiao PG. Cytotoxicity of cycloartane triterpenoids from aerial part of Cimicifuga foetida. Fitoterapia 2006; 77: 39-42.
Tong XH, Lin SG, Fujii M, Hou DX. Molecular mechanisms of echinocystic acid-induced apoptosis in HepG2 cells. Biochem Biophys Res Commun. 2004; 321: 539-46.
Wolter KG, Hsu YT, Smith CL, Nechushtan A, Xi XG, Youle RJ. Movement of Bax from the cytosol to mitochondria during apoptosis. J Cell Biol. 1997; 139: 1281-92.
Yang CS, Landau JM, Huang MT, Newmark HL. Inhibition of carcinogenesis by dietary polyphenolic compounds. Ann Rev Nutr. 2001; 21: 381-406.
Zhong H, Tran LM, Stang JL. Induced-fit docking studies of the active and inactive states of protein tyrosine kinases. J Mol Graph Model. 2009; 28: 336-46.
Zhu AX. Hepatocellular carcinoma: Are we making progress? Cancer Invest. 2003; 21: 418-28.
