In vitro anti-cancer potential and GC-MS analysis of Drimia nagarjunae, an endangered medicinal plant
Abstract
The aim of the present study was to investigate the anticancer activity of Drimia nagarjunae (Liliaceae) extracts against Colo205 Human Colon Cancer cell lines by SRB assay for the first time. The bulbs and leaves of the plant were sequentially extracted using solvents with increasing polarities (hexane> chloroform>ethyl acetate>methanol>water). Ethyl acetate and chloroform bulb extracts showed potent anticancer activity compared to standard, adriamycin. Both the extracts exhibited total growth inhibition of cell at 20.1 and 32.1 µg/mL whereas adriamycin shown 33.1 µg/mL and 50% lethal concentration was found to be 61.5 and >80 µg/mL respectively. The active extracts were subjected to GC-MS analysis for identification of phytocompounds and it showed seven and ten major compounds respectively. Therefore, the present study demonstrated that D. nagarjunae can be a promising candidate as an anticancer agent.
Introduction
Colon cancer is referred to as large intestine cancer, commonly in people over age 50. It is caused due to high fat diet and diet low in vegetables fruits and fibres (Winawer et al., 1995). Several chemotherapeutic, cytotoxic and immunomodulation agents are available in Western medicine to treat cancer (Newman et al., 2003). Besides being enormously expensive, these drugs are associated with serious side effects. Hence, at present, natural products have been contemplated to be of exceptional value in the development of effective anticancer drugs, with minimum host cell toxicity and cost effective (Samuel et al., 2014).
The genus Drimia is composed of about 100 species and belongs to liliaceae family. It is widely distributed around equatorial regions and in India (Stedje, 1987). These plants are having various medicinal virtues and possess potent anticancer activity. The genus has important applications as cardiotonics, anticarcinomics and expectorant. These species contain large number of cardiac glycosides (scillaren A, proscillaridin A and bufadienolides) which are used in the treatment of cardiac dysfunction and antitumor activities (KameÂshwari et al., 2014). Other bioactive constituents found in the genus are alkaloids, phenolic compounds, quercetin and kaempferol derivatives which show various pharmacological activities including antioxidant and anti-inflammatory (Kameshwari, 2013). Among Drimia species, D. indica and D. maritima have reported to exhibit anticancer activity (Ganesh et al., 2012; Bozcuket al., 2011). Drimia nagarjunae, an endangered native India medicinal plant, is a member of liliaceae family (Sunil, 2011). No pharmacological investigation in the perspective of anticancer activity has yet been reported on D. nagarjunae. Therefore, in the present study we aimed to investigate the anticancer activity of D. nagarjunae on Colo205 HCC cell line.
Materials and Methods
Sample preparation and extraction
The plant was collected from Bhata village, Sri Potti Sriramulu Nellore district, Andhra Pradesh, India and was authenticated by National Ayurveda Dietetics Research Institute, Bangalore with authentication number SMPU/NADRI/ BNG/2013-14/83. The bulbs (B) and leaves (L) were cleaned, dried and powdered. The powdered materials were sequentially extracted using solvents with increasing polarities [hexane (HEX)>chloroform (CHL)>ethyl acetate (EAE)>methanol (MET)>water (WAT)] at 1:10 (w/v) concentrations by using Soxhlet apparatus. The extracts were filtered through Whatman No. 1 filter paper. The filtrate was concentrated by rotary evaporator and used for further studies.
SRB assay
The anticancer potential of plant was evaluated by SRB assay according to standard procedure (Skehan et al., 1990). The anticancer activities of extracts were studied at Advanced Center for Treatment, Research and Education in Cancer (ACTREC), Mumbai where the cell lines were maintained in ideal laboratory conditions. The Colo205 HCC cell lines were grown in 96 well microtiter plates for 24 hours prior to addition of experimental drugs at standard conditions. To measurement of the cell population for cell line at the time of drug addition after 24 hours, the wells were fixed in situ with TCA. To each well 10 µL of the extracts was added with final drug concentrations of 10, 20, 40 and 80 µg/mL. The known anticancer drug, adriamycin was used as standard drug.
End point measurement
The cold TCA was added to terminate the assay after 48 hours incubation of plates at standard condition. 50 µL of cold 30% (w/v) TCA (final concentration, 10% TCA) was added to cells for in situ fixation and incubated for 60 min at 4°C. The supernatant was discarded and the plates were washed, dried. After dry, to each well sulforhodamine B (SRB) solution (50 µL) at 0.4% (w/v) in 1% acetic acid was added. The plates were incubated for 20 min at room temperature. The residual dye was removed by washing five times with 1% acetic acid after recover of unbound dye and plates were air dried. Bound stain was subsequently eluted with 10 mM trizma base, and the absorbance was read on an ELISA plate reader at a wave length of 540 nm with 690 nm reference wavelength. The total growth inhibition of cells (TGI), growth inhibition of 50% (GI50) and 50% lethal concentration (LC50) were calculated.
GI50 value of = 20 ug/mL is considered to demonstrate activity.
Gas Chromatography-Mass Spectrometry (GC-MS) analysis
The EAE-B and CHL-B extracts were subjected for GC-MS analysis. The thermo GC -Trace ultra Ver: 5.0, thermo MS DSQ II and equipped with column DB 5 - MS capillary standard non-polar with a dimension of 35 Mts x 0.25 mm x 0.25 um was used for analysis. Helium gas was used as the carrier gas at constant flow rate 1 mL/min and an injection volume of 1 uL. The oven injector temperature 70°C and raised to 260°C at 6°C/min. Total GC running time was 37.5 min.
Identification of components
Interpretation on mass spectrum GC-MS was conducted using the database of National Institute Standard and Technology (NIST) having more than 62,000 patterns. The spectrum of the unknown component was compared with relative retention time and mass spectra of the known components stored in the NIST library. The name, molecular weight and structure of the components of the test materials were ascertained.
Results
The inhibitory effects of extracts from D. nagarjunae on the viability of Colo205 cells were determined by SRB assay. LC50, TGI and GI50 of bulb and leaf extracts of D. nagarjunae were assessed (Table I). Percentage growth control of bulb and leaves extracts were shown in Figure 1. The anticancer activity of extracts was found in the order of EAE-B>CHL-B>EAE-L>WAT-B>MET-L>HEX-B>CHL-L>MET-B>HEX-L>WAT-L. In all the tested extracts, EAE-B, CHL-B and EAE-L extracts have exhibited prominent and dose dependent anticancer activity when compared with standard drug, ADR. EAE-B exhibited more anti-cancer activity than CHL-B and EAE-L extract. The EAE-B extracts showed lower LC50 of 61.5 µg/mL while the ADR has 76.0 µg/mL. Total growth inhibition of CHL-B, EAE-B and EAE-L has 32.1, 20.1 and 43.6 µg/mL respectively when compared to ADR 33.1 µg/mL. GI50 of CHL-B, EAE-B and EAE-L extracts were found to be similar (<10 µg/mL) to the standard drug. Hence, EAE-B and CHL-B extracts were chosen for GC-MS analysis for identification of possible bioactive components.
Table I:LC50, TGI and GI50 of Drimia nagarjunae extracts (µg/mL)
| Extracts | HEX-B | CHL-B | EAE-B | MET-B | WAT-B | HEX-L | CHL-L | EAE-L | MET-L | WAT-L | ADR |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LC50 | >80 | >80 | 61.5 | >80 | >80 | >80 | >80 | >80 | >80 | >80 | 76.0 |
| TGI | >80 | 32.1 | 20.1 | >80 | >80 | >80 | >80 | 43.6 | >80 | >80 | 33.1 |
| GI50 | 49.7 | <10 | <10 | 77.5 | 39.4 | >80 | 64.2 | <10 | 21.9 | >80 | <10 |

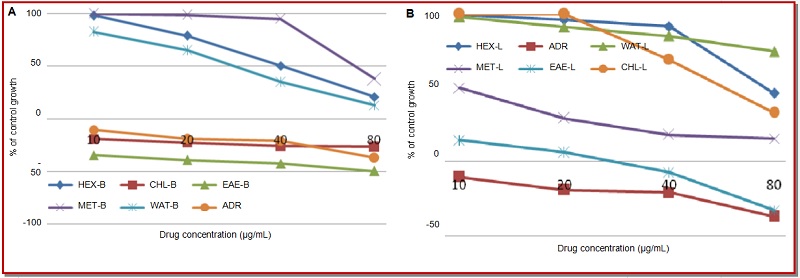

Figure 1: Effect of bulb (A) or leaf (B) extracts of Drimia nagarjunae on the percentage control growth of Colo205
GC-MS analysis showed the presence of ten and seven compounds in EAE-B and CHL-B extracts of D. nagarjunae. The active principles with their retention time (RT), molecular formula, molecular weight and concentration (peak area%) of EAE-B extract are depicted (Table II). Compound peaks of EAE-B extracts were determined from GC-MS chromatogram (Figure 2). The active principles and the compound peaks of CHL-B extract were also studied (data not shown).
Table II: Chemical profile identified by GC-MS analysis of EAE-B of Drimia nagarjunae
| SL. No. | RT | Compounds | Molecular formula | MW | Area % |
|---|---|---|---|---|---|
| 1 | 3.03 | Acetic acid | C4H8O2 | 88 | 2.4 |
| 2 | 6.93 | (D,L)-malic acid | C4H6O5 | 134 | 3.5 |
| 3 | 22.74 | Hexadecanoic acid | C16H32O2 | 256 | 3.0 |
| 4 | 28.77 | Ethyl[4-t-Butyl-2,6-bis(1-methoxy-1-methylethyl)phenyl]phosphinate | C20H35O4P | 370 | 7.9 |
| 5 | 30.11 | {[Thorium-(pentamethylcyclopentadienyl)]-tris[(trimethylsilylamino)-1',2'-ethylideneamino]} | C25H54N4S i3Th | 726 | 3.1 |
| 6 | 32.72 | Hexadecanoic acid, 2-hydroxy-1-(hydroxymethyl)ethyl ester | C19H38O4 | 330 | 10.2 |
| 7 | 36.65 | Octadecanoic acid, 2-hydroxy-1-(hydroxymethyl)ethyl ester | C21H42O4 | 358 | 4.7 |

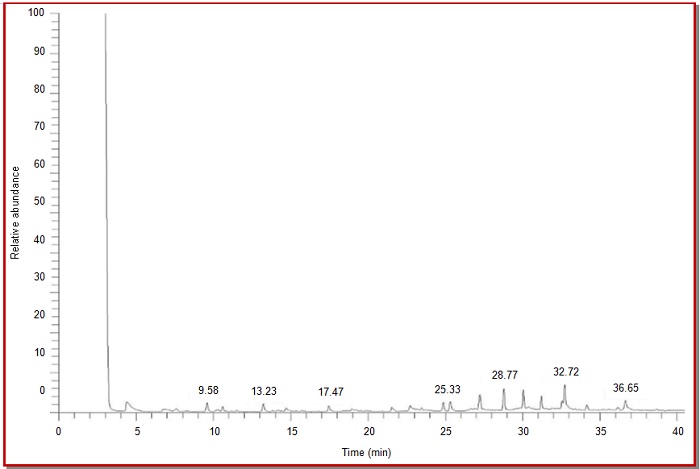

Figure 2: GC-MS chromatogram of EAE-B of Drimia nagarjunae
Discussion
The present study was aimed to analyse the in vitro anticancer activity of D. nagarjunae against Colo205 Human Colon Cancer cell lines by SRB assay. Sulforhodamine B (SRB) assay is a high-throughput and sensitive method for evaluating cytotoxic activity against cancer and noncancerous cell lines. It has several advantages over other contemporary cytotoxicity assays; because SRB assay is independent of cell metabolic activity, not interfered by test compounds and easy to perform (Vichai and Kirtikara, 2006). Among the tested extracts, CHL-B, EAE-B and EAE-L have exhibited prominent and dose dependent anticancer activity when compared with standard drug, ADR. Low GI50 i.e. <10 µg/mL indicates the anticancer property of the plant extracts (data not shown). Similar studies related to anticancer activity has been reported for D. indica and D. maritima. The aqueous bulb extracts of D. indica showed 82% of antiproliferative activity on breast cancer cell lines (Ganesh et al., 2012). The novel 29 KDa glycoprotein isolated from D. indica showed the anti-angiogenic and proapoptotic activity (Deepak et al., 2006). The EAE-B extracts showed LC50 of 61.5 µg/mL while ADR exhibited 76.0 µg/mL. The TGI of CHL-B, EAE-B and EAE-L have 32.1, 20.1 and 43.6 µg/mL respectively when compared to ADR (33.1 µg/mL). The results were in accordance with D. maritima extracts which has shown more cytotoxicity on lung cancer cell lines compared to standard chemotherapeutics (Bozcuk et al., 2011). GC-MS results revealed that the two extracts from D. nagarjunae are rich in bioactive compounds which might be responsible for anticancer activity.
The present study demonstrated that D. nagarjunae can be a promising candidate as a potential anticancer agent. Further studies will be carried out for the characterization of bioactive compound(s) responsible for the activity.
Conclusion
This is the first report on anti-cancer activity and GC-MS analysis of D. nagarjunae.
Acknowledgements
The authors are grateful to the Jain University for providing required facilities for carrying out the research work. We are extremely thankful to Prof. Leela Iyengar for her constructive comments.
References
Bozcuk K, Mustafa O, Aykurt O, Fatih T, Hasan O, Deniz E, Asuman K, Aylin M, DurmuÅŸ B.Urginea maritima (L.) Baker (Liliaceae) extract induces more cytotoxicity than standard chemotherapeutics in the A549 non-small cell lung cancer (NSCLC) cell line. Turk J Med Sci. 2011; 41: 101-08.
Deepak AV, Bharathi P, Salimath. Antiangiogenic and proapoptotic activity of a novel glycoprotein from Urginea indica is mediated by NF-kB and caspase activated DNase in ascites tumour model. Biochimie. 2006; 88: 297-307.
Ganesh BB, Naveen AD, Bhaskar DK. Laxmi K, Swarna P, Malla RR. Analysis of antioxidant and anticancer potentials of Urginea indica, an endangered medicinal plant. J Pharm Res. 2012; 5: 4921-28.
Kameshwari MNS, Lakshman AB, Paramasivam G. Biosystematics studies on medicinal plant Urginea indica Kunth. Liliaceae: A review. Int J Pharm Life Sci. 2012; 3: 1394-406.
Kameshwari MNS. Chemical constituents of wild onion Urginea indica Kunth Liliaceae. Int J Pharm Life Sci. 2013; 4: 2414-20.
Newman DJ, Cragg GM, Snader KM. Natural products as sources of new drugs over the period 1981-2002.J Nat Prod. 2003; 66: 1022-37.
Samuel BT, Molly M, Dhanabal SP. Anticancer activity of Cissampelo spareira against dalton's lymphoma ascites bearing mice. Phcog Mag. 2014; 10: 200-06.
Skehan P, Storeng R, Scudiero D, Monks A, McMahon J., Vistica D, Warren JT, Bokesch H, Kenney S, Boyd MR. New colorimetric cytotoxicity assay for anticancer-drug screening. J Natl Cancer Inst. 1990; 82: 1107-12.
Stedje B. A revision of the genus Drimia (Hyacinthaceae) in East Africa. Nord J Bot. 1987; 7: 655.
Sunil N. Plant biodiversity and its conservation in Institute for Social and Economic Change (ISEC) Campus, Bangalore: A case study. J Biodiversity 2011; 2: 9-26.
Vichai V, Kirtikara K. Sulforhodamine B colorimetric assay for cytotoxicity screening. J Nat Protoc. 2006; 1: 1112-16.
Winawer, Sidney J, Shike, Moshe MD. Cancer free: The comprehensive cancer prevention program. New York, Simon and Schuster, 1995, pp 1-416.
